RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

RD12-90 Battery Installation Diagram

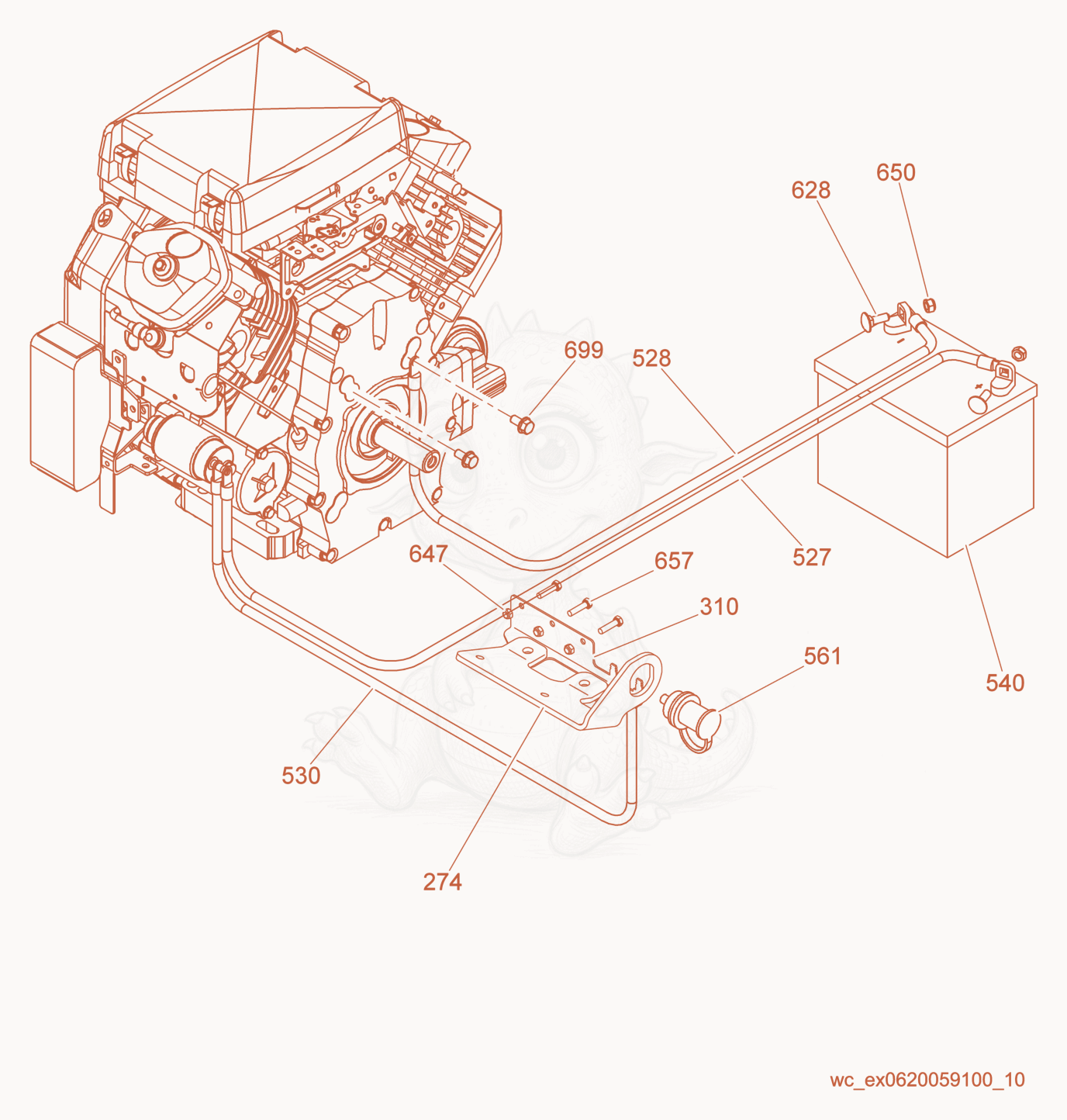

Exploded parts diagram of the Battery Installation of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2745000163907
    $281.92
    BRACKET-VOLTAGE REG P-5000112007 - 5000163907×1
  • 3105000165509
    $113.72
    BRACKET-CONNECTOR,RD12 P-5000112007 - 5000165509×1
  • 5275000165624
    $32.25
    CABLE-BATTERY,POSITIVE - 5000165624×1
  • 5285000165625
    $26.10
    CABLE-BATTERY,NEGATIVE - 5000165625×1
  • 5305000165575
    $15.54
    CABLE-POSITIVE,JUMPER - 5000165575×1
  • 5405000118088
    $172.05
    BATTERY-340 CCA - 5000118088×1
  • 5615000164775
    $61.08
    TERMINAL-REMOTE JUMPER - 5000164775×1
  • 6285000163954
    $0.35
    Bolt-Carriage M8x20-8.8,Blk EP3 - 5000163954×2
  • 6475000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×3
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 6575000011476
    $0.09
    SCREW M5 X 16 HX.HD. - 5000011476×3
  • 6995000163948
    $0.35
    SCREW M8X16 HX FLG BL ZN 8.8,W/202 - 5000163948×2
