RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

RD12-90 Rear Drum Diagram

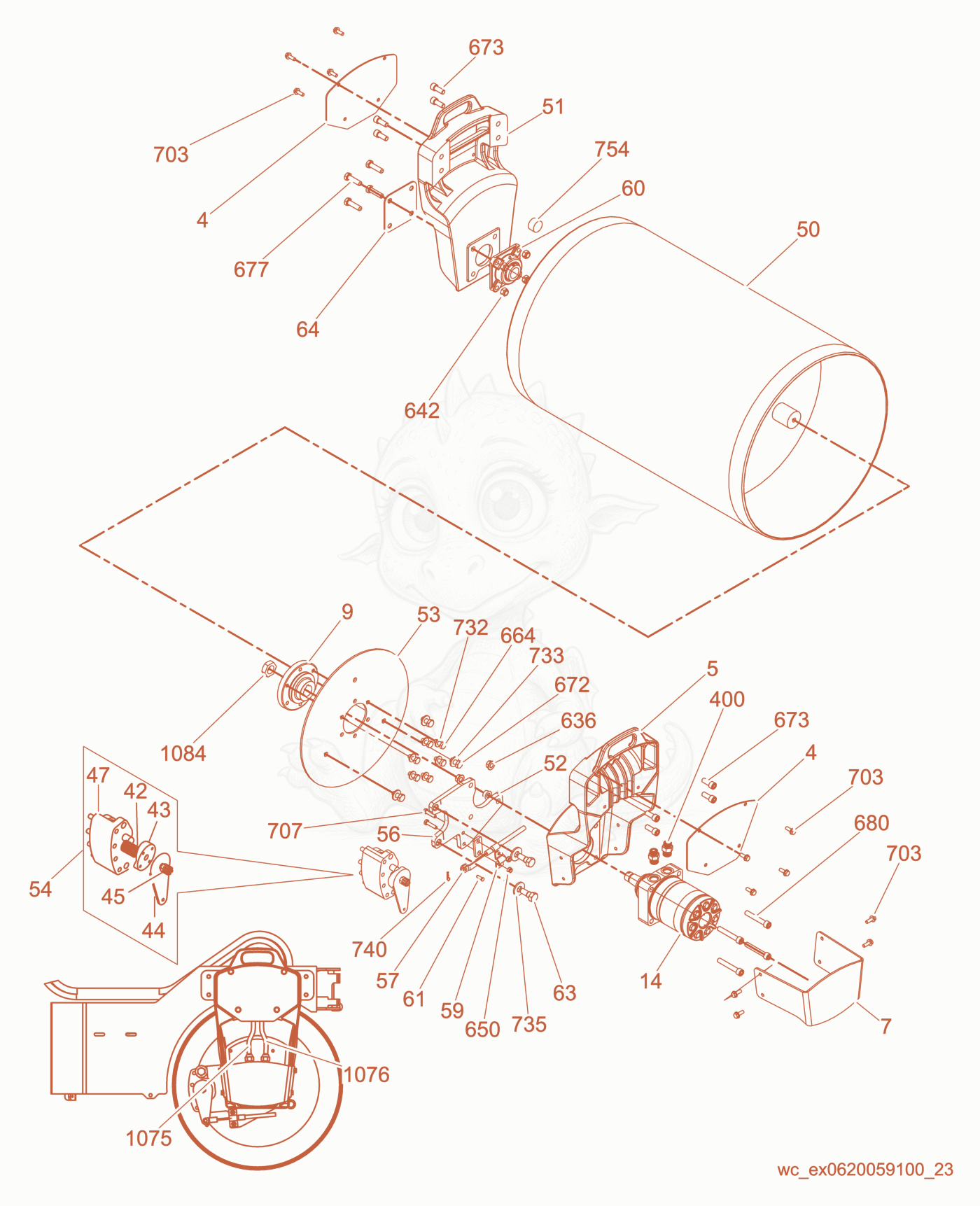

Exploded parts diagram of the Rear Drum of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000111119
    $19.47
    COVER-DRUM SUPPORT P-5000176420 - 5000111119×2
  • 55000111058
    $488.26
    BRACKET-DRUM SUPPORT P-5000176420 - 5000111058×1
  • 75000114215
    $247.32
    GUARD-MOTOR P-5000176420 - 5000114215×1
  • 95000114856
    $489.82
    HUB-MACHINED - 5000114856×1
  • 145000114214
    $1,914.83
    MOTOR-HYDRAULIC - 5000114214×1
  • 425000153351
    $6.67
    SPRING-BRAKE LEVER - 5000153351×1
  • 435000153352
    $256.59
    CAM-BRAKE LEVER - 5000153352×1
  • 445000151119
    $58.43
    LEVER-BRAKE,RD11 - 5000151119×1
  • 455000153353
    $96.60
    NUT-HEX,SLOTTED,7/16-20 - 5000153353×1
  • 475000151118
    $143.55
    PAD-BRAKE,SET,RD11 - 5000151118×1
  • 505000111133
    $2,906.41
    DRUM-STATIC - 5000111133×1
  • 515000111264
    $521.69
    BRACKET-DRUM SUPPORT P-5000176420 - 5000111264×1
  • 525000119262
    $327.70
    MOUNT-PLATE,BRAKE P-5000176420 - 5000119262×1
  • 535000111135
    $214.45
    PLATE-DRIVE P-5000176420 - 5000111135×1
  • 545000119264
    $610.58
    BRAKE-RD11,DOM. - 5000119264×1
  • 565000114093
    $64.43
    SPACER-CABLE P-5000176420 - 5000114093×1
  • 575000163257
    $82.98
    CABLE-BRAKE - 5000163257×1
  • 595000111047
    $6.42
    CLAMP-BRAKE CABLE - 5000111047×1
  • 605000111048
    $51.29
    FLANGE-BEARING - 5000111048×1
  • 615000116785
    $0.29
    PIN-CLEVIS 1/4 X 3/4 - 5000116785×1
  • 635000151112
    $8.37
    PIN-BRAKE MOUNT - 5000151112×2
  • 645000112692
    $9.20
    COVER-BEARING P-5000176420 - 5000112692×1
  • 4005000079875
    $4.36
    FITTING-STR.THD.CONNECTOR - 5000079875×2
  • 4005000080733
    $0.45
    O-RING .755 X.097 DURO90 3-910 - 5000080733×1
  • 4005000080737
    $0.15
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
  • 6365000164045
    $1.21
    NUT-M12,HX.HD,FLG ZN,8.8 - 5000164045×4
  • 6425000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×4
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×1
  • 6645000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×6
  • 6725000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×3
  • 6735000011529
    $0.84
    SCREW M12 X 30 SOC.HD - 5000011529×8
  • 6775000011300
    $0.93
    SCREW M12 X 45 HX.HD. - 5000011300×4
  • 6805000114098
    $1.01
    SCREW M12 X 75,SOC.HD. - 5000114098×4
  • 7035000087023
    $0.35
    SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×12
  • 7075000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×2
  • 7325000033988
    $0.41
    WASHER-LOCK 10 - 5000033988×6
  • 7335000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×3
  • 7355000153532
    $3.16
    WASHER-LOCK M16 CON SPR,MZP - 5000153532×2
  • 7405000114506
    $0.12
    PIN .0585X1-1/8 ,COTTER,ZINC - 5000114506×1
  • 7545000078305
    $8.54
    FITTING-PLUG 1 NPT,HEX.HEAD - 5000078305×1
  • 10755000164817
    $344.88
    TUBE-STEEL AFT MOTOR A - 5000164817×1
  • 10765000164816
    $40.07
    TUBE-STEEL AFT MOTOR B - 5000164816×1
  • 10845000083689
    $45.87
    NUT 1 -20 UNEF 2A - 5000083689×1
