RD880V-ROLLER, DOUBLE DRUM

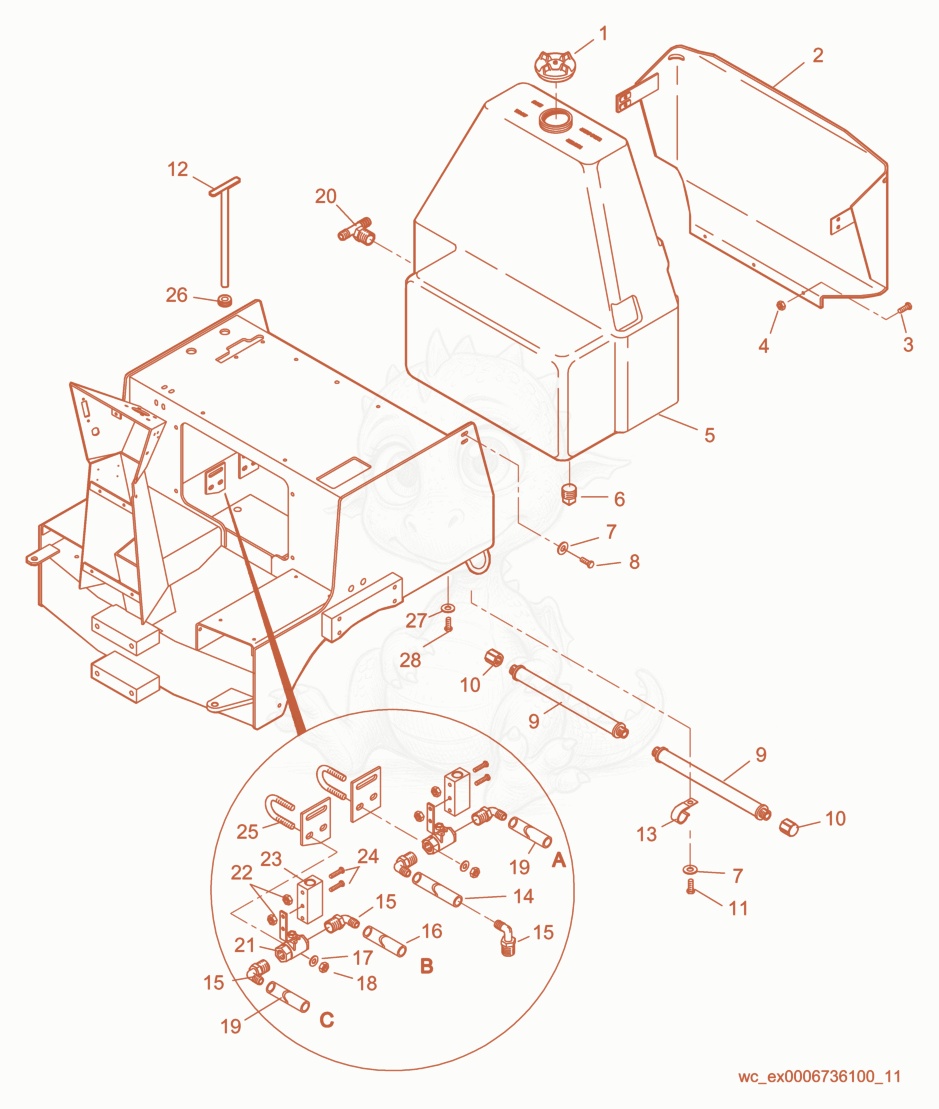

RD880V Watering System Diagram

Exploded parts diagram of the Watering System of a Wacker Neuson RD880V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000079235
    $17.52
    CAP-WATER TANK - 5000079235×1
  • 25000081236
    $306.66
    GUARD-TANK P-5000112006 - 5000081236×1
  • 35000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×3
  • 45000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×3
  • 55000078929Not stocked
    Water tank×1
  • 65000030161
    $0.91
    PLUG - 5000030161×1
  • 75000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×6
  • 85000012361
    $0.23
    SCREW M8 X 16 HX.HD. - 5000012361×4
  • 95000079218
    $28.58
    TUBE-ASSEMBLY - 5000079218×2
  • 105000079215
    $7.74
    CAP-1/2 NPT, PLASTIC - 5000079215×2
  • 115000013552
    $0.33
    SCREW M8 X 10 HX.HD. - 5000013552×2
  • 125000079210Not stocked
    Handle×2
  • 135000079214Not stocked
    Clamp×2
  • 145000079260
    $33.62
    HOSE-PLASTIC,14 LONG - 5000079260×1
  • 155000151121
    $2.95
    FITTING-1/2 ELBOW - 5000151121×5
  • 165000079259
    $41.61
    TUBE-PLASTIC,76 LONG - 5000079259×1
  • 175000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 185000025723
    $0.09
    NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×4
  • 195000079258
    $31.57
    TUBE-PLASTIC,7-1/2 LONG - 5000079258×2
  • 205000079200
    $3.38
    FITTING-TEE ADAPTER,MALE - 5000079200×1
  • 215000079857
    $69.00
    VALVE-WATER,BALL,MODIFIED - 5000079857×2
  • 225000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×6
  • 235000079855Not stocked
    Block×2
  • 245000011464
    $0.09
    SCREW M6 X 50 HX.HD. - 5000011464×4
  • 255000079223
    $6.36
    NLA BOLT-U 3/4 PIPE,3/8-16 THREAD - 5000079223×4
  • 265000079228
    $3.47
    Grommet - 5000079228×2
  • 275000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×4
  • 285000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×4
