RD880V-ROLLER, DOUBLE DRUM

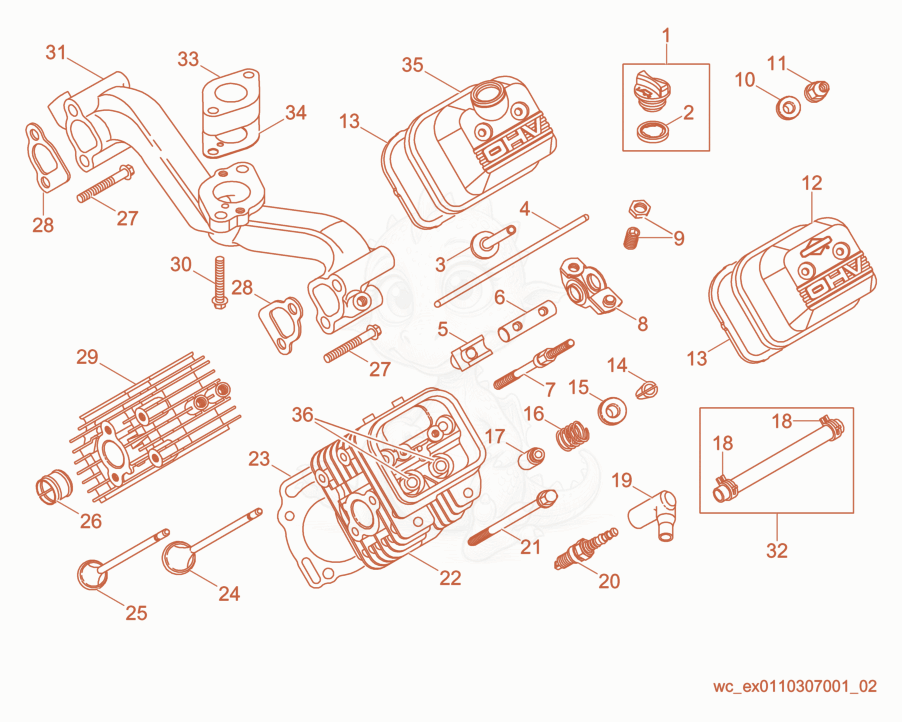

RD880V Inner Cylinder cpl. Diagram
- 5000111429$155.42SET-GASKETS,ENGINE - 5000111429×1
- 5000111430$165.64KIT-OVERHAUL,VALVE - 5000111430×1
- PLUG-OIL FILL - 5000089718×1
- X-5000089718 SEAL-DIPSTICK - 5000083553×1
- 35000110077Not stockedTappet×2
- ROD-PUSH,ENGINE VALVES - 5000080967×1
- PUSHROD-ENG.VALVE,EXHAUST SIDE - 5000080997×1
- SUPPORT-ROCKER ARM - 5000080966×4
- 65000080965Not stockedRocker shaft×2
- Stud - 5000080964×4
- 85000080975Not stockedValve rocker arm×4
- 85000110078Not stockedRocker arm×4
- SCREW-VALVE ADJUSTER - 5000080976×2
- Washer - 5000081038×4
- Nut - 5000081037×4
- 125000081046Not stockedCover×1
- GASKET-VALVE COVER - 5000081040×2
- HOLDER-ENGINE VALVE - 5000080974×4
- SPRING-HOLDER - 5000080973×4
- 165000110079Not stockedSpring×4
- SEAL-VALVE GUIDE - 5000080971×4
- clamp - 5000051797×2
- ELBOW-SPARK PLUG CAP - 5000081034×2
- SPARK PLUG-CHAMPION RC12YC - 5000080657×2
- 215000081035Not stockedScrew×4
- 225000083237Not stockedCylinder head×1
- GASKET-CYLINDER HEAD - 5000081044×2
- VALVE-ENGINE INTAKE - 5000080970×2
- VALVE-ENGINE EXHAUST - 5000080969×2
- INSERT-EXHAUST PORT,LINER - 5000081043×1
- 275000080910Not stockedScrew×4
- GASKET-INTAKE MANIFOLD - 5000080912×2
- 295000083236Not stockedCylinder head×1
- 305000080914Not stockedScrew×4
- 315000110080Not stockedIntake manifold×1
- HOSE-ASSEMBLY,FUEL LINE 11 LG - 5000076966×1
- SPACER - 5000080911×1
- GASKET-CARBURETOR MOUNT - 5000080903×2
- COVER-VALVE - 5000089720×1
- BUSHING-GUIDE - 5000089719×4
