RD880V-ROLLER, DOUBLE DRUM

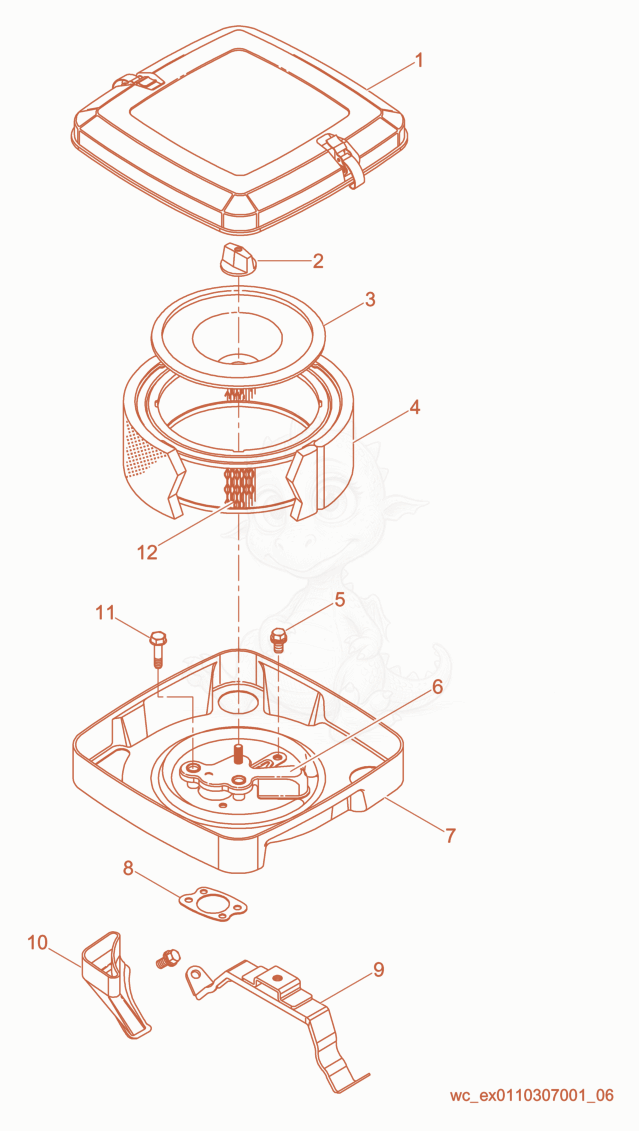

RD880V Air Cleaner/Round Filter Type Diagram

Exploded parts diagram of the Air Cleaner/Round Filter Type of a Wacker Neuson RD880V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5000111429
    $155.42
    SET-GASKETS,ENGINE - 5000111429×1
  • 15000082602
    $100.65
    COVER-AIR CLEANER - 5000082602×1
  • 25000082603
    $13.05
    KNOB-AIR CLEANER - 5000082603×1
  • 35000082604
    $37.70
    HOLDER-AIR CLEANER - 5000082604×1
  • 45000081069
    $6.64
    FILTER-AIR,PRECLEANER - 5000081069×1
  • 55000118497Not stocked
    Screw×2
  • 65000082605
    $76.96
    GUARD-SHIELD,CARBURETOR - 5000082605×1
  • 75000082606Not stocked
    Housing×1
  • 85000083242
    $8.64
    GASKET-AIR CLEANER MOUNT - 5000083242×1
  • 95000118493
    $22.61
    STRAP-AIR CLEANER - 5000118493×1
  • 105000118447
    $60.19
    NLA BAFFLE-AIR - 5000118447×1
  • 115000118471
    $6.40
    Screw - 5000118471×1
  • 125000081068
    $31.08
    ELEMENT-AIR CLEANER - 5000081068×1
