RD880V-ROLLER, DOUBLE DRUM

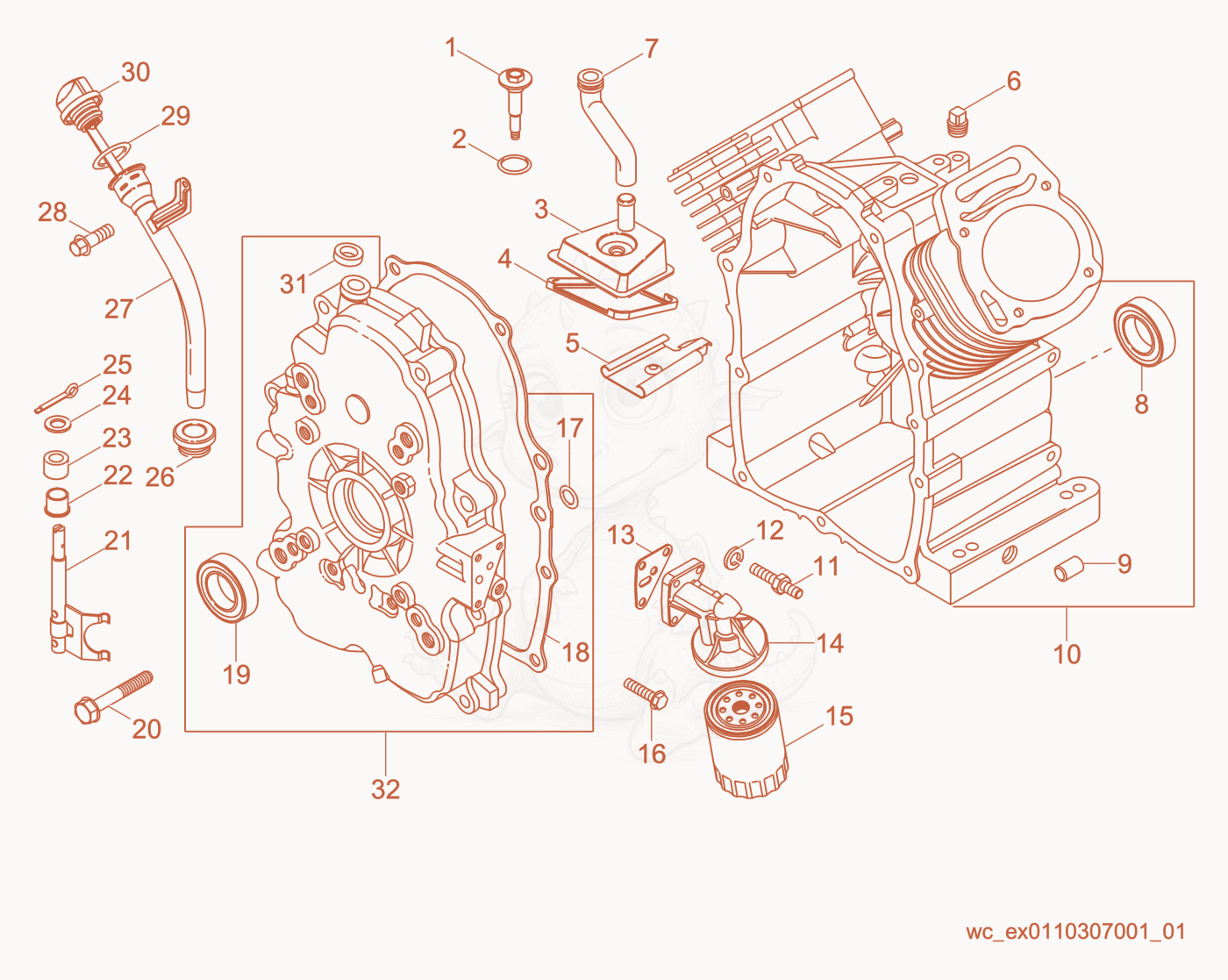

RD880V Outer Cylinder cpl. Diagram
- 5000111429$155.42SET-GASKETS,ENGINE - 5000111429×1
- 15000083235Not stockedScrew×1
- BREATHER-ASSEMBLY - 5000083234×1
- Baffle - 5000080981×1
- 65000081042Not stockedPlug (threaded)×1
- TUBE - 5000081049×1
- SEAL-SHAFT - 5000081053×1
- 95000081032Not stockedDowel pin×1
- CYLINDER-ASSEMBLY - 5000081031×1
- Stud - 5000081025×3
- WASHER-LOCK - 5000081026×3
- GASKET-OIL ADAPTER - 5000079752×1
- ADAPTER-OIL FILTER MOUNT - 5000081023×1
- FILTER-OIL - 5000110075×1
- 165000081022Not stockedScrew×3
- O-ring - 5000118494×1
- GASKET-CRANKCASE COVER - 5000081020×1
- SEAL-SHAFT - 5000081018×1
- 205000118497Not stockedScrew×8
- YOKE-GOVERNOR CONTROL - 5000080988×1
- BUSHING-CRANK,GOVERNOR - 5000118442×1
- BUSHING-CRANK,GOVERNOR - 5000118441×1
- 245000080985Not stockedShaft seal×1
- 255000080984Not stockedCotter pin×1
- SEAL - 5000081014×1
- Tube - 5000081013×1
- 285000080893Not stockedScrew×1
- O-RING - SEAL - 5000081012×1
- Dipstick - 5000081011×1
- Washer - 5000081019×1
- 325000081016Not stockedCover×1
