RD880V-ROLLER, DOUBLE DRUM

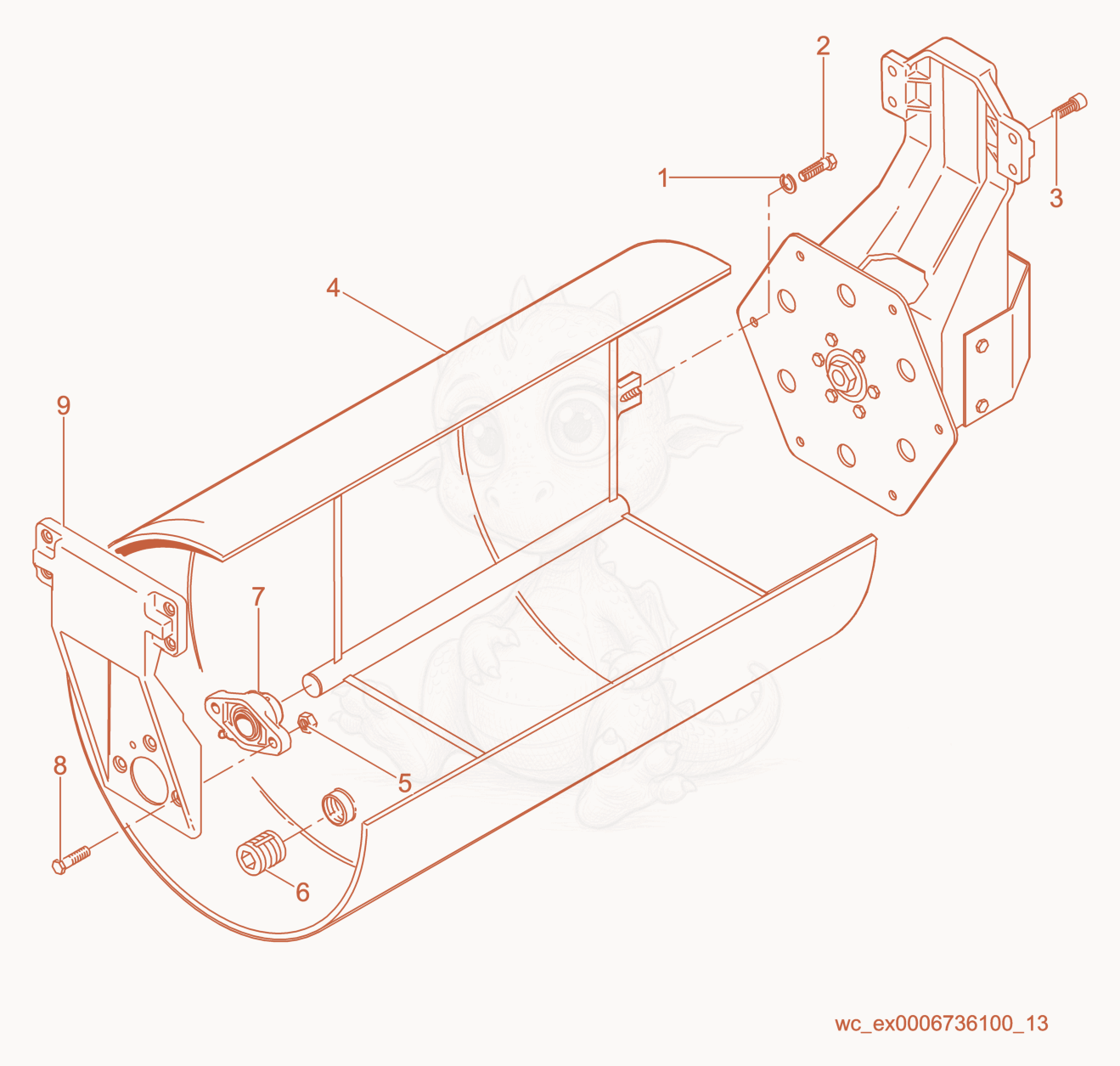

RD880V Rear Drum Diagram

Exploded parts diagram of the Rear Drum of a Wacker Neuson RD880V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000033988
    $0.41
    WASHER-LOCK 10 - 5000033988×6
  • 25000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×6
  • 35000017087
    $2.33
    SCREW M12 X 30 10.9,SOC - 5000017087×8
  • 45000077937Not stocked
    Drum×1
  • 55000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×2
  • 65000078305
    $8.54
    FITTING-PLUG 1 NPT,HEX.HEAD - 5000078305×1
  • 75000073148
    $95.91
    BEARING-FLANGE MOUNT - 5000073148×1
  • 85000011300
    $0.93
    SCREW M12 X 45 HX.HD. - 5000011300×2
  • 95000081531
    $377.97
    NLA FLANGE-BEARING SUPPORT - 5000081531×1
