RD880V-ROLLER, DOUBLE DRUM

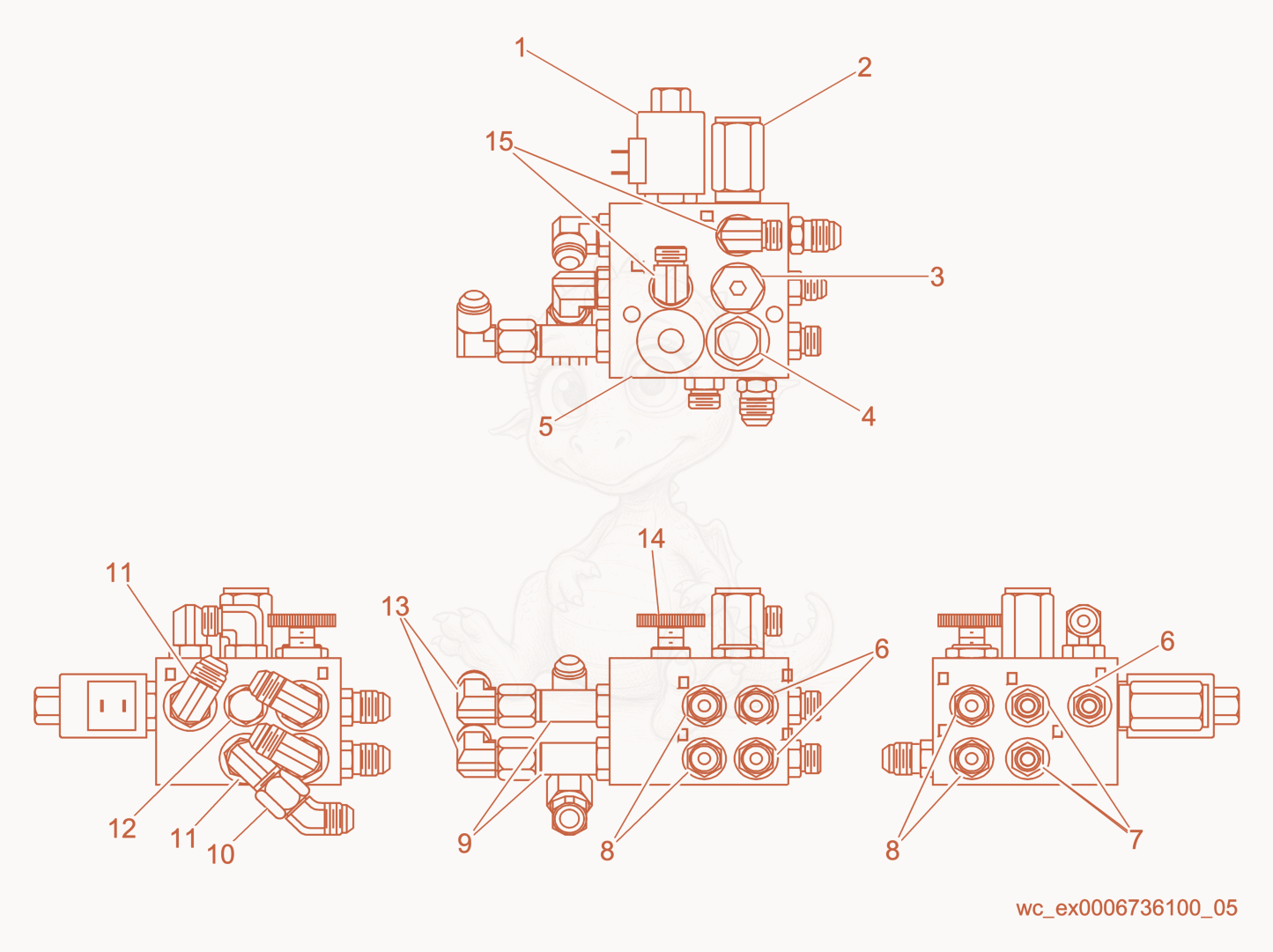

RD880V Manifold Diagram

Exploded parts diagram of the Manifold of a Wacker Neuson RD880V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000078651
    $300.72
    VALVE-HYDRAULIC SOLENOID - 5000078651×1
  • 25000078959
    $163.86
    VALVE-DIFF.AREA RELIEF,2000PSI - 5000078959×1
  • 35000088898
    $163.86
    VALVE-STEERING,PRESSURE RELIEF - 5000088898×1
  • 45000080556
    $143.04
    VALVE-BLANK CARTRIDGE - 5000080556×1
  • 55000078812Not stocked
    Block×1
  • 65000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731Unknown×1
  • 65000089112Not stocked
    Fitting×3
  • 75000073075Not stocked
    Fitting×2
  • 75000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731×1
  • 85000078816
    $4.99
    FITTING-MALE ADAPTER,STRAIGHT - 5000078816×4
  • 85000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731×1
  • 95000080732
    $0.32
    O-RING .644 X.087 DURO90 3-908 - 5000080732Unknown×1
  • 95000054822Not stocked
    Fitting×2
  • 105000014398
    $0.07
    O-RING 12 X 2-70 Sh - 5000014398Unknown×1
  • 105000078815Not stocked
    Hydraulic elbow fitting×1
  • 115000052656
    $6.36
    FITTING-ELBOW 90,STR.THRD,HYD - 5000052656×2
  • 115000080732
    $0.32
    O-RING .644 X.087 DURO90 3-908 - 5000080732×1
  • 125000078269
    $10.16
    PLUG 9/16-18UNF - 5000078269×1
  • 135000052606
    $12.20
    FITTING-ELBOW 90,SWIVEL NUT - 5000052606×2
  • 145000080557
    $91.70
    VALVE-NEEDLE - 5000080557×1
  • 155000078962
    $11.04
    FITTING-ELBOW 90,HYDRAULIC - 5000078962×2
  • 155000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731×1
  • 155000080736
    $0.19
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
