RD880V-ROLLER, DOUBLE DRUM

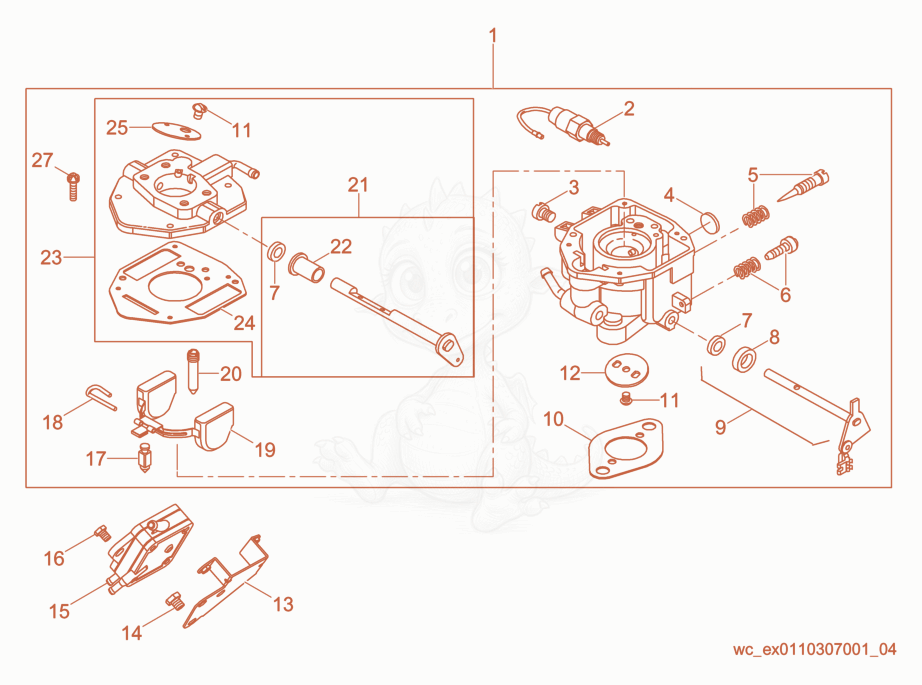

RD880V Engine/Carburetor Diagram

Exploded parts diagram of the Engine/Carburetor of a Wacker Neuson RD880V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5000080916
    $354.04
    KIT-CARBURETOR OVERHAUL - 5000080916×1
  • 5000111429
    $155.42
    SET-GASKETS,ENGINE - 5000111429×1
  • 15000110085
    $702.12
    Carburetor - 5000110085×1
  • 25000080923
    $346.20
    SOLENOID - 5000080923×1
  • 35000110086
    $26.76
    JET-MAIN - 5000110086×1
  • 45000080900
    $7.04
    PLUG - 5000080900×1
  • 55000080904Not stocked
    Valve×1
  • 65000080905
    $5.53
    SCREW-THROTTLE ADJUSTMENT - 5000080905×1
  • 75000080799
    $24.78
    Seal - 5000080799×1
  • 85000080902
    $11.46
    RING-COLLAR,THROTTLE CONTROL - 5000080902×1
  • 95000080906
    $84.11
    SHAFT-THROTTLE CONTROL - 5000080906×1
  • 105000080903
    $4.61
    GASKET-CARBURETOR MOUNT - 5000080903×2
  • 115000080089Not stocked
    Screw×2
  • 125000080901
    $37.74
    VALVE-THROTTLE CONTROL - 5000080901×1
  • 135000080929
    $61.27
    BRACKET-FUEL PUMP SUPPORT - 5000080929×1
  • 145000080945
    $9.19
    Screw - 5000080945×3
  • 155000080930
    $38.30
    PUMP-FUEL - 5000080930×1
  • 165000080931
    $3.95
    PENDX-0160165 SCREW - 5000080931×2
  • 175000080897Not stocked
    Valve×1
  • 185000080896Not stocked
    Float cpl.×1
  • 195000080895
    $24.42
    PIN-FLOAT HINGE - 5000080895×1
  • 205000080898
    $67.30
    JET-SLOW SPEED - 5000080898×1
  • 215000079171
    $38.41
    SHAFT-CHOKE CONTROL - 5000079171×1
  • 225000080798
    $13.05
    RING-COLLAR,CHOKE CONTROL - 5000080798×1
  • 235000083233
    $200.32
    BODY-CARBURETOR, UPPER - 5000083233×1
  • 245000079783
    $39.45
    GASKET-INTAKE ELBOW - 5000079783×1
  • 255000080008
    $15.46
    VALVE-CHOKE CONTROL - 5000080008×1
  • 275000080894
    $5.56
    Screw - 5000080894×1
