RD880V-ROLLER, DOUBLE DRUM

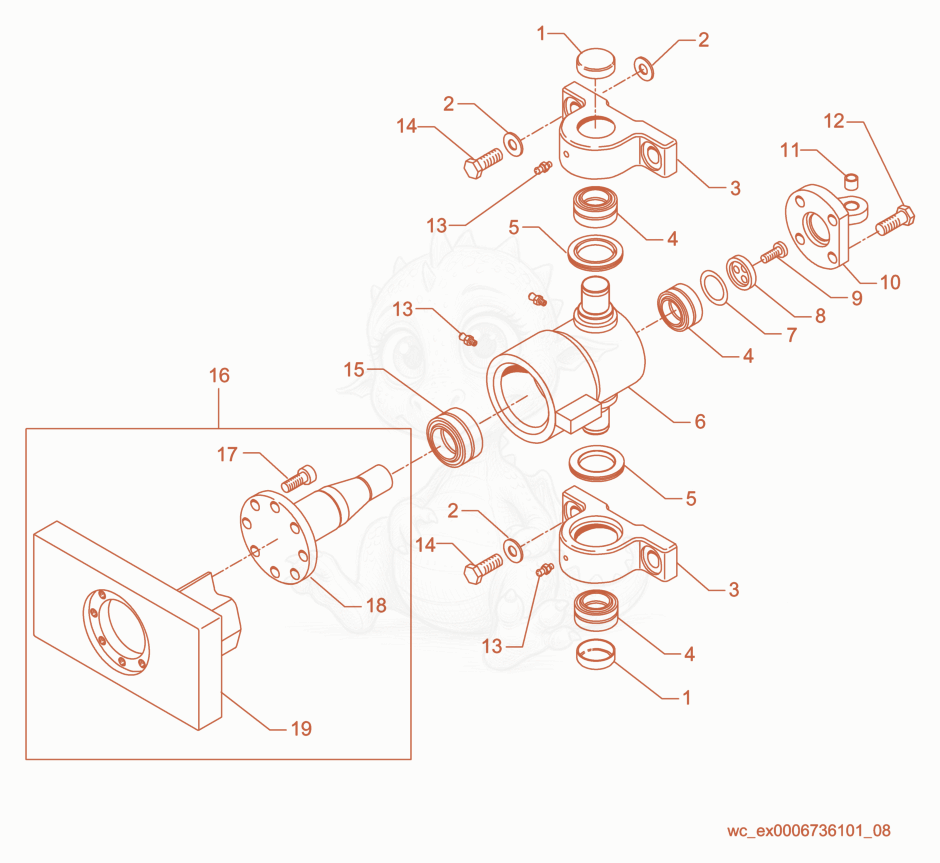

RD880V Articulated Steering Joint Diagram

Exploded parts diagram of the Articulated Steering Joint of a Wacker Neuson RD880V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000079756
    $7.32
    PLUG-EXPANSION - 5000079756×2
  • 25000010618
    $0.28
    WASHER B17 FLAT - 5000010618×4
  • 35000079747
    $372.26
    HOUSING-MACHINED - 5000079747×2
  • 45000079161
    $20.44
    BEARING-SPHERICAL BALL,PLAIN - 5000079161×3
  • 55000079721
    $15.24
    SEAL-SHAFT 1.62 X 2.46 X.25,9A - 5000079721×2
  • 65000110738
    $364.74
    KIT-HOUSING,ARTICULATED JOINT - 5000110738×1
  • 75000083222
    $2.19
    SHIM,.010 THICK,ARTICULATED JT - 5000083222×1
  • 85000080057
    $80.12
    HOLDER-SHAFT - 5000080057×1
  • 95000011262
    $0.35
    SCREW M8 X 25 SOC.HD. - 5000011262×3
  • 105000115516
    $230.02
    PIVOT-CYLINDER - 5000115516×1
  • 115000079894
    $3.59
    BEARING-SLEEVE,1/2 ID - 5000079894×1
  • 125000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 135002004705
    $0.32
    FITTING-GREASE AM6 - 5002004705×4
  • 145000011374
    $1.51
    SCREW M16 X 50 HX.HD. - 5000011374×4
  • 155000079162
    $112.64
    BEARING-SPHERICAL BALL,PLAIN - 5000079162×1
  • 165000084513Not stocked
    Pivot Kit×1
  • 175000016389
    $1.83
    SCREW M12 X 35 10.9,SOC - 5000016389×6
  • 185000112011Not stocked
    Shaft×1
  • 195000084511Not stocked
    Mounting plate×1
