RD880V-ROLLER, DOUBLE DRUM

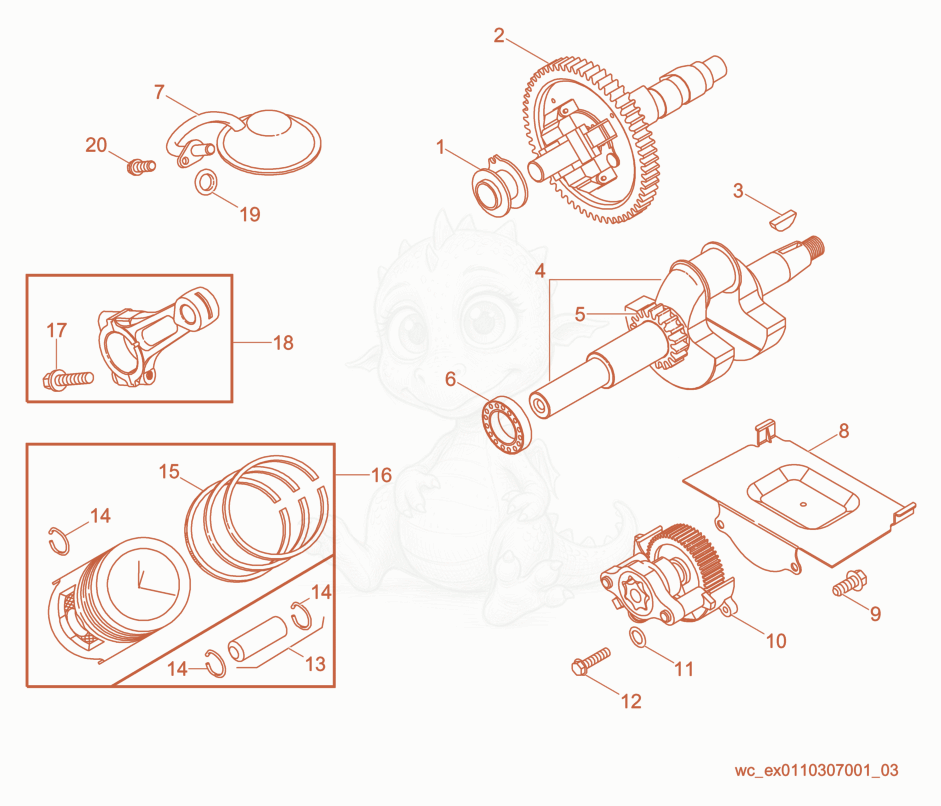

RD880V Engine Drive System Diagram

Exploded parts diagram of the Engine Drive System of a Wacker Neuson RD880V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5000111429
    $155.42
    SET-GASKETS,ENGINE - 5000111429×1
  • 15000080989Not stocked
    Slider×1
  • 25000080996
    $312.08
    GEAR-CAM - 5000080996×1
  • 35000110081Not stocked
    Woodruff key×1
  • 45000080994
    $541.97
    Crankshaft - 5000080994×1
  • 55000083243Not stocked
    Timing gear×1
  • 65000110082
    $59.57
    BEARING-BALL - 5000110082×1
  • 75000081028Not stocked
    Screen×1
  • 85000110083
    $10.67
    Plate - 5000110083×1
  • 95000110084
    $6.40
    Screw - 5000110084×2
  • 105000118501Not stocked
    Oil pump×1
  • 115000118443
    $10.86
    CHOKE-LINK - 5000118443×1
  • 125000118471
    $6.40
    Screw - 5000118471×2
  • 135000080980
    $29.38
    PIN-PISTON - 5000080980×1
  • 145000118434
    $8.05
    LOCK-PISTON PIN - 5000118434×3
  • 155000080978Not stocked
    Piston Ring Set×2
  • 165000080977
    $175.20
    PISTON-STANDARD SIZE - 5000080977×2
  • 175000118440
    $11.62
    Screw - 5000118440×1
  • 185000080982
    $94.33
    connecting rod - 5000080982×4
  • 195000118439
    $9.43
    O-ring - 5000118439×1
  • 205000080931
    $3.95
    PENDX-0160165 SCREW - 5000080931×1
