RD880V-ROLLER, DOUBLE DRUM

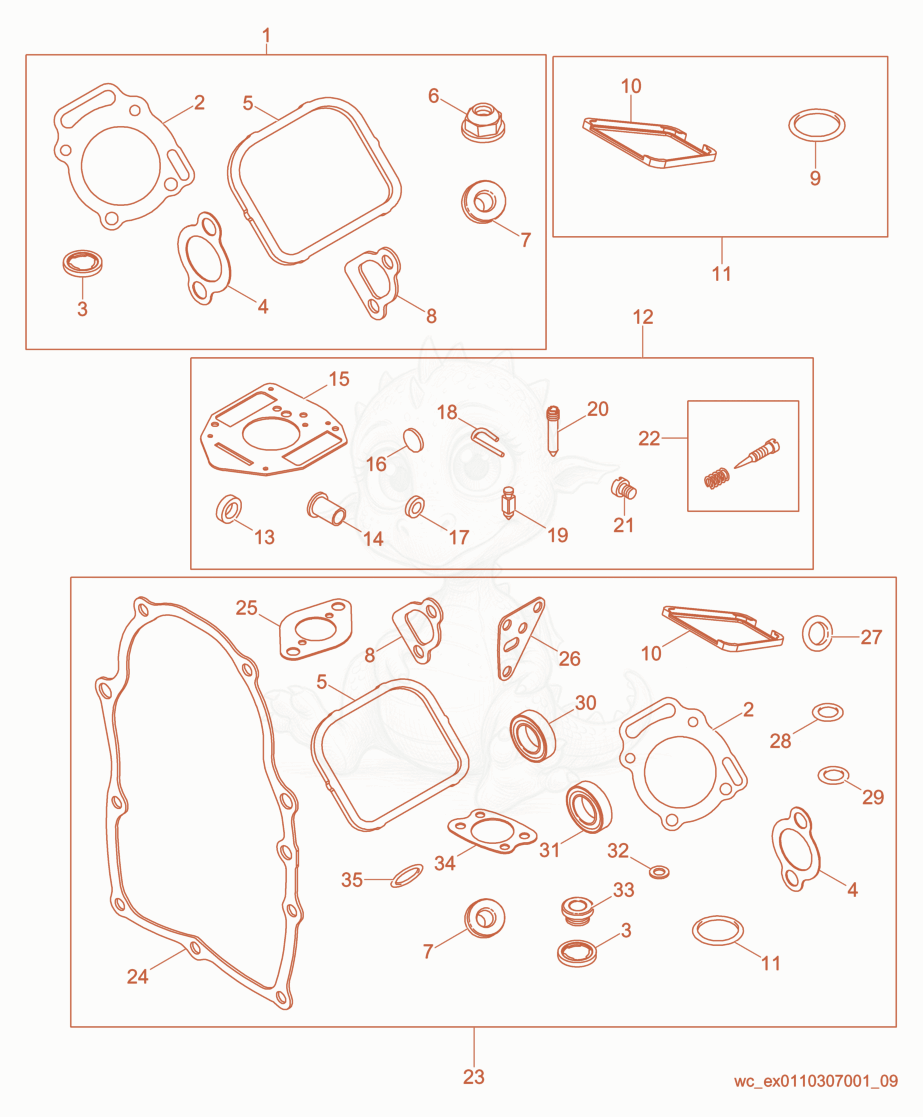

RD880V Engine Gasket/Repair Kits Diagram
- KIT-OVERHAUL,VALVE - 5000111430×1
- GASKET-CYLINDER HEAD - 5000081044×1
- X-5000089718 SEAL-DIPSTICK - 5000083553×1
- GASKET-EXHAUST MANIFOLD - 5000080943×1
- GASKET-VALVE COVER - 5000081040×1
- Nut - 5000081037×1
- Washer - 5000081038×1
- GASKET-INTAKE MANIFOLD - 5000080912×1
- 115000081051Not stockedGasket Set×1
- KIT-CARBURETOR OVERHAUL - 5000080916×1
- RING-COLLAR,THROTTLE CONTROL - 5000080902×1
- RING-COLLAR,CHOKE CONTROL - 5000080798×1
- GASKET-INTAKE ELBOW - 5000079783×1
- PLUG - 5000080900×1
- Seal - 5000080799×1
- PIN-FLOAT HINGE - 5000080895×1
- 195000080897Not stockedValve×1
- JET-SLOW SPEED - 5000080898×1
- JET-MAIN - 5000110086×1
- 225000080904Not stockedValve×1
- SET-GASKETS,ENGINE - 5000111429×1
- GASKET-CRANKCASE COVER - 5000081020×1
- GASKET-CARBURETOR MOUNT - 5000080903×1
- GASKET-OIL ADAPTER - 5000079752×1
- O-ring - 5000118439×1
- O-ring - 5000118433×1
- O-ring - 5000118494×1
- SEAL-SHAFT - 5000081018×1
- SEAL-SHAFT - 5000081053×1
- 325000080985Not stockedShaft seal×1
- SEAL - 5000081014×1
- GASKET-AIR CLEANER MOUNT - 5000083242×1
- O-RING - SEAL - 5000081012×1
