RD880V-ROLLER, DOUBLE DRUM

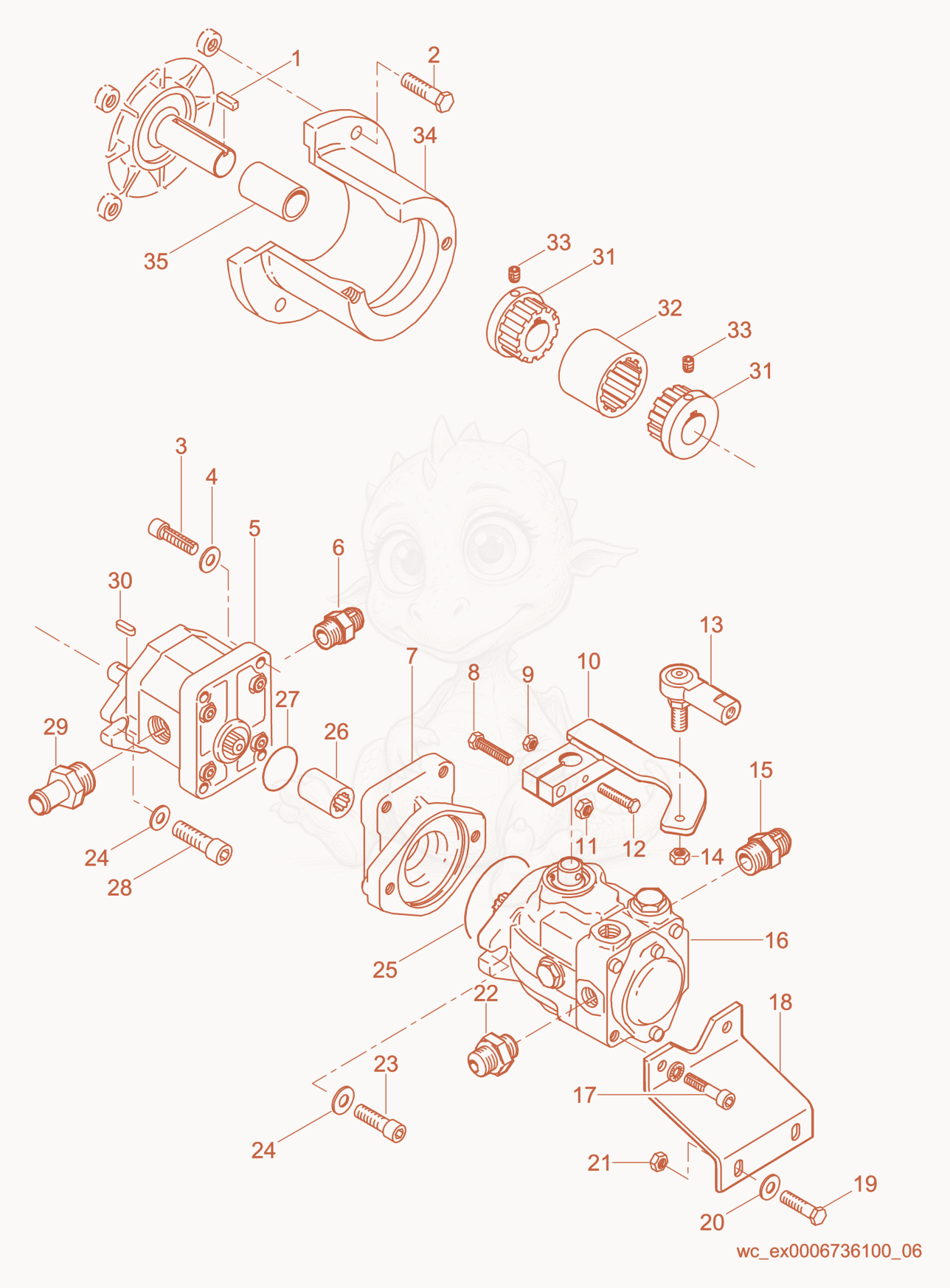

RD880V Drive Pump Installation Diagram
- KEY-SQUARE 1/4 X 7/8 - 5000052027×1
- SCREW 3/8-16 X 1-1/4 GR5,HX.HD - 5000025555×4
- WASHER-FLAT,M8,ZINC - 5000010622×4
- PUMP-W/ADAPTER - 5000087707×1
- 65000027985Not stockedFitting×1
- O-RING .755 X.097 DURO90 3-910 - 5000080733×1
- KIT-ADAPTER - 5000080538×1
- SCREW M8 X 45 HX.HD. - 5000011342×1
- NUT-LOCK M5 HEX. - 5000010369×1
- LEVER-PUMP P-5000112007 - 5000087044×1
- NUT-LOCK M8 HEX - 5000010367×1
- SCREW M5 X 40 HX.HD - 5000011364×1
- FITTING-BALL JOINT,ROD END - 5000086665×1
- NUT-LOCK 1/4-28,HEX,NYLON INS. - 5000028746×1
- NLA FITTING-ADAPTER, - 5000072098×1
- O-RING .644 X.087 DURO90 3-908 - 5000080732×1
- KIT-PUMP,HYD,PISTON - 5000089405×1
- SCREW M8 X 60 SOC.HD. - 5000013575×2
- BRACKET-SUPPORT,MTG P-5000112007 - 5000080561×1
- SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×2
- 205000085956Not stockedShim×2
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
- NLA FITTING-ADAPTER,HYDRAULIC - 5000080564×1
- O-RING .644 X.087 DURO90 3-908 - 5000080732×1
- SCREW M10 X 30 SOC.HD. - 5000011534×2
- WASHER B10.5 FLAT - 5000010621×6
- O-RING 3.237 X .103 - 5000080555×1
- coupling - 5000083703×1
- O-RING 1.424 X .103 - 5000080554×1
- SCREW M8 X 20 SOC.HD. - 5000011543×4
- FITTING-HYD,BEADED - 5000078871×1
- O-RING .924 X.116 DURO90 3-912 - 5000080734×1
- COUPLING - 5000080684×1
- SLEEVE-COUPLER - 5000080683×1
- SCREW-SET 5/16-18 X 5/16 - 5000051318×2
- 345000086150Not stockedAdapter×1
- 355000078865Not stockedSpacer×1
