RD880V-ROLLER, DOUBLE DRUM

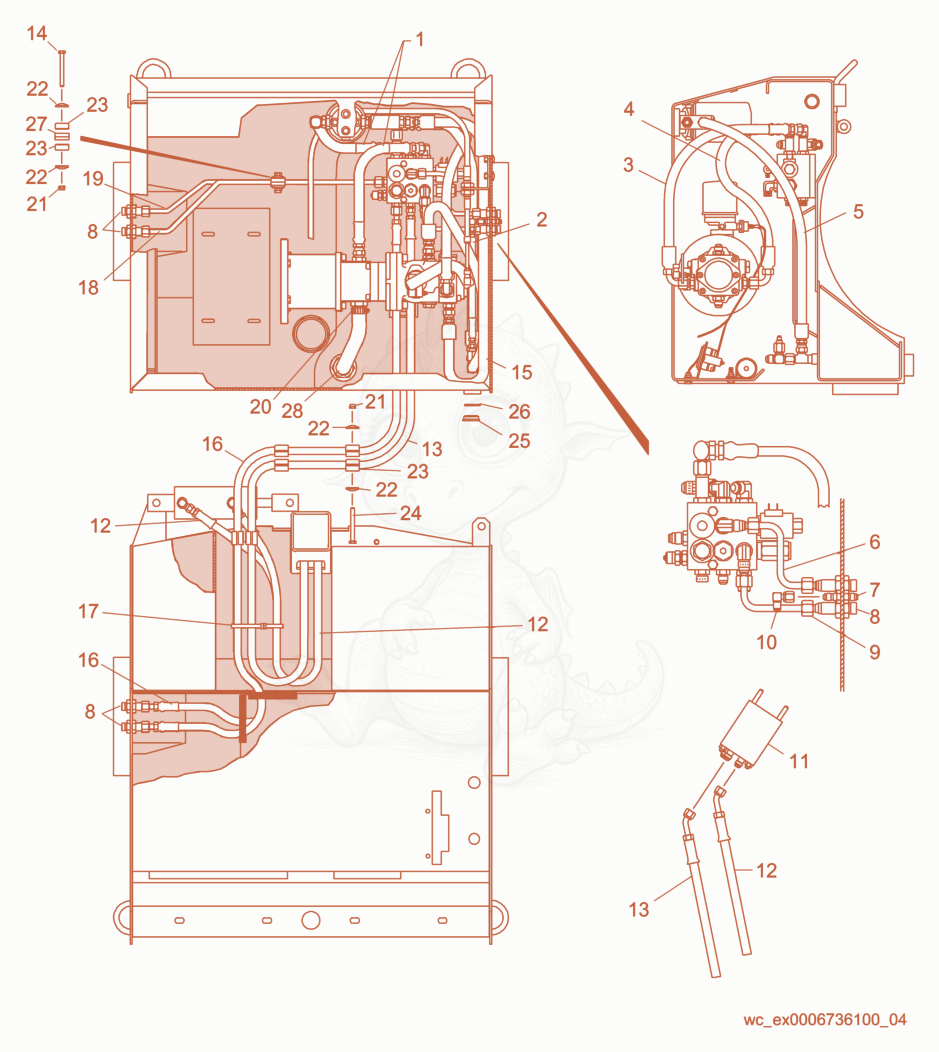

RD880V Engine Compartment/Hydraulics Diagram
- HOSE #08 X 16.5 LG,HYD - 5000078991×2
- 25000078992Not stockedHose×1
- HOSE R2AT8-C0C3-24.000 - 5000080796×1
- HOSE R2AT8-C0C3-21.750 - 5000080795×1
- HOSE R6A8-COCO-30.00 - 5000080568×1
- 65000078996Not stockedTube cpl.×1
- FITTING-BULKHEAD UNION - 5000029592×1
- FITTING-ADAPTER,BULKHEAD,#6HYD - 5000078964×6
- O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
- 95000078997Not stockedTube cpl.×1
- 105000078987Not stockedHydraulic elbow fitting×1
- 115000078986Not stockedValve×1
- SEAL-KIT, STEERING VALVE - 5000083820×1
- HOSE R2FS6-COC2-48.000 - 5000078993×2
- HOSE R2FS6-COC2-92.000 - 5000078994×2
- SCREW M8 X 50 HX.HD. - 5000011343×1
- HOSE R6A8-COCO-41.00 - 5000080567×1
- HOSE R2FS6-F2F2-65.000 - 5000078995×2
- 175000111569Not stockedTie cable×3
- TUBE-ASSEMBLY,DRUM DRIVE TOP - 5000078998×1
- NLA TUBE-ASSEMBLY,DRUM DRIVE BOTTM - 5000078999×1
- CLAMP-THREADED,.81-1.5 - 5000028314×1
- NUT-LOCK M8 HEX - 5000010367×3
- PLATE-HOSE SUPPORT COVER - 5000075953×8
- 235000076036Not stockedClamp Set×9
- SCREW M10 X 35 HX.HD. - 5000011438×6
- SIGHTGLASS - 5000013971×1
- GASKET-SIGHT GLASS - 5000053829×1
- 275000079003Not stockedBushing×2
- HOSE #12 X 10.25 LG,HYD - 5000078983×1
