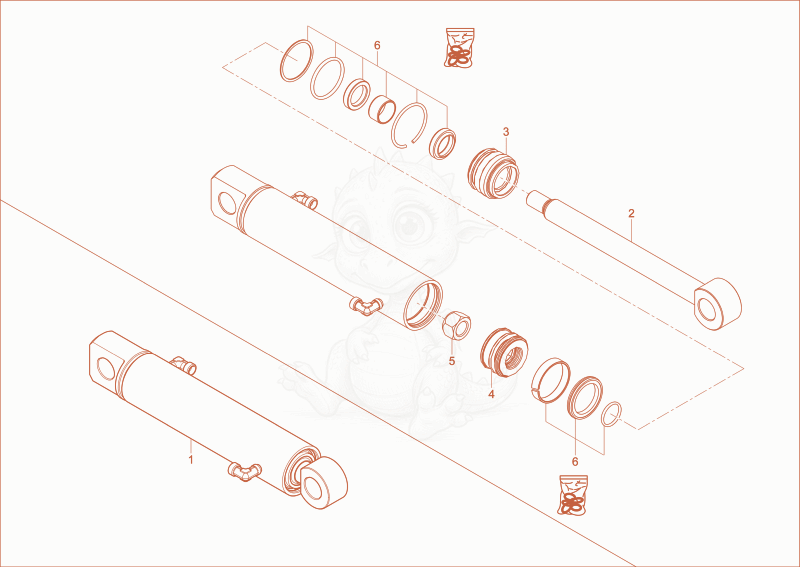

803 telescope cylinder Diagram

Exploded parts diagram of the telescope cylinder of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000259153
$1,003.99
telescope cylinder X-1000361689 - 1000259153×1
21000159626
$557.66
PISTON ROD - 1000159626×1
31000159625
$439.23
GUIDE BUSHING - 1000159625×1
41000159603
$139.43
PISTON - 1000159603×1
51000159602
$6.03
Nut - 1000159602×1
61000159606
$142.33
CYLINDER SEAL KIT - 1000159606×1
