803 boom cylinder Diagram

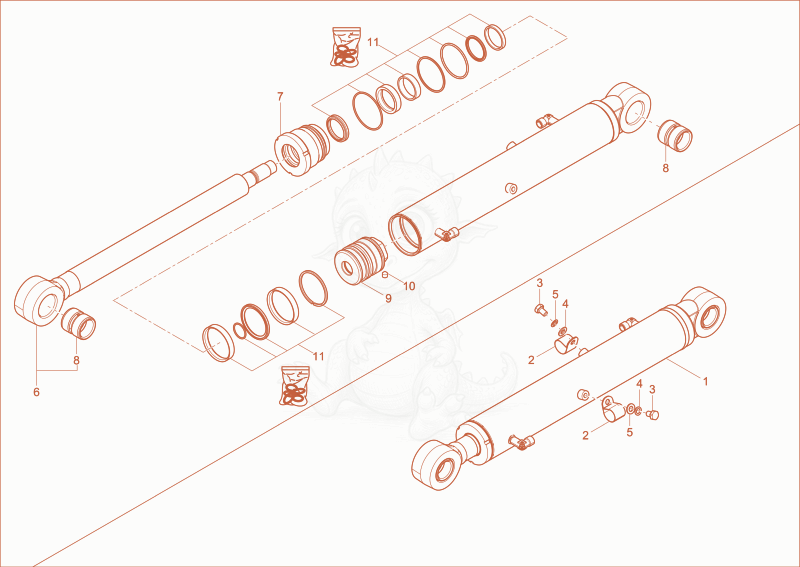

Exploded parts diagram of the boom cylinder of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000187409
$1,355.13
lifting arm cylinder - 1000187409×1
21000068818Not stocked
clamp×2
31000020553Not stocked
hex screw×2
41000015436Not stocked
lock washer×2
51000015430Not stocked
washer×2
61000159635
$857.49
PISTON ROD - 1000159635×1
71000159634
$221.62
GUIDE BUSHING - 1000159634×1
81000165322
$58.60
STEEL BUSHING - 1000165322×2
91000159632
$137.94
PISTON - 1000159632×1
101000128055
$2.61
thread pin - 1000128055×1
111000159633
$79.10
CYLINDER SEAL KIT - 1000159633×1
