803 locking Diagram

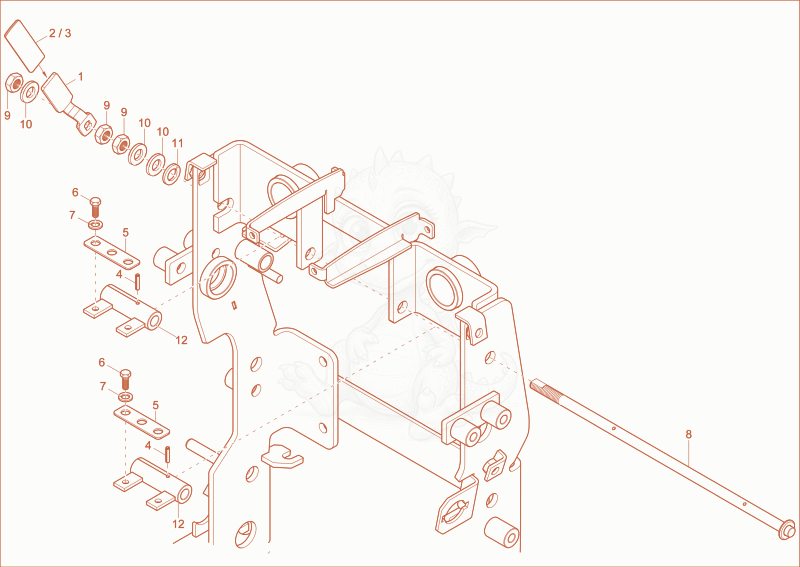

Exploded parts diagram of the locking of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000150968
$12.69
lever - 1000150968×1
21000243241
$3.41
handle protection - 1000243241×1
31000160686
$11.44
handle protection - 1000160686×1
41000151241
$1.99
cotter pin - 1000151241×2
51000151005
$11.56
fixing plate - 1000151005×2
61000085389
$0.73
hex screw M8x12-8.8 A2C DIN933 - 1000085389×4
71000082617
$1.08
spring washer - 1000082617×4
81000150909
$52.44
shaft - 1000150909×1
91000015422Not stocked
hexagon nut×3
101000049219Not stocked
washer×3
111000049422
$1.68
SPRING RING - 1000049422×1
121000150983
$59.96
locking device - 1000150983×2
