803 ROPS hinged (Option) Diagram

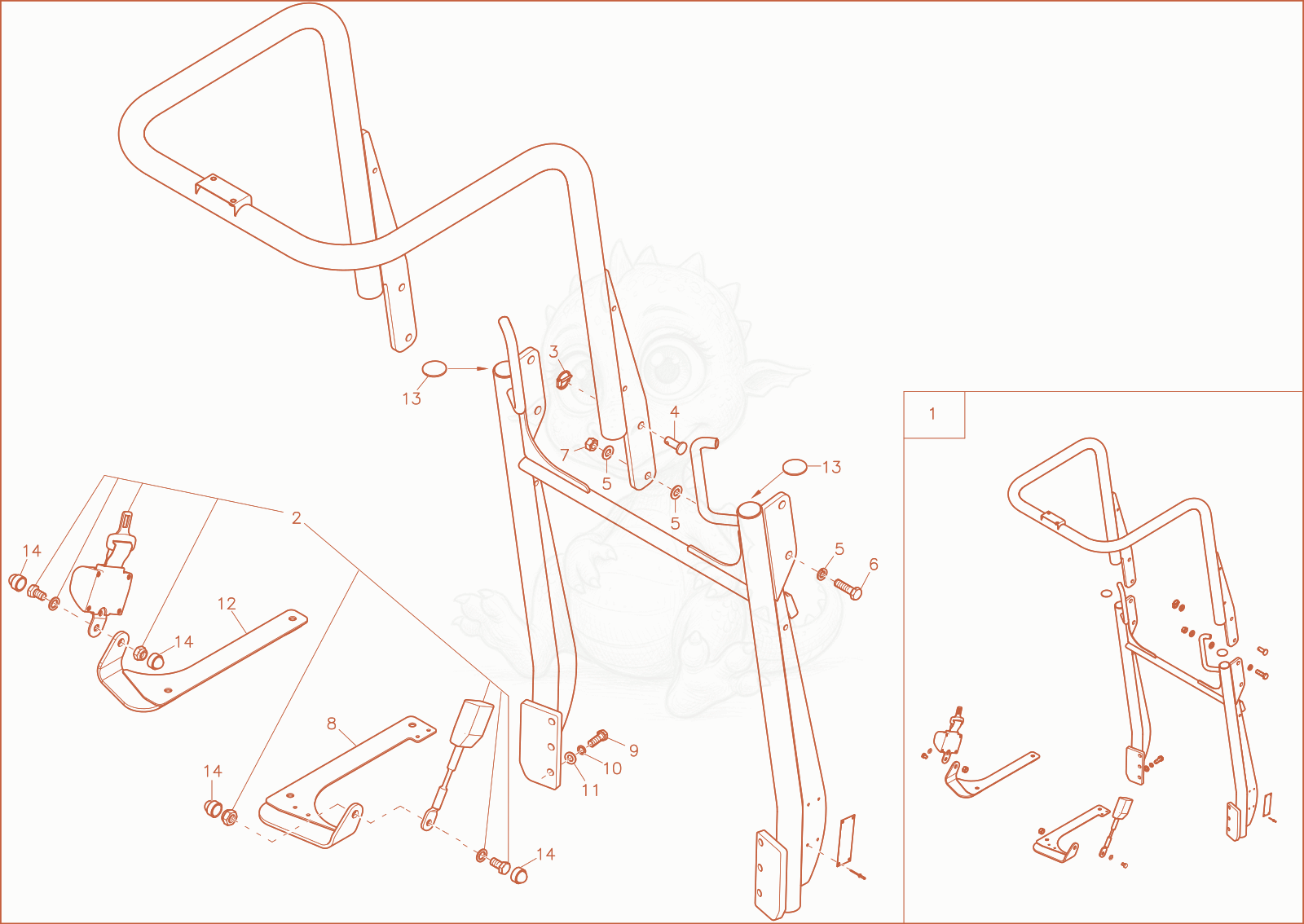

Exploded parts diagram of the ROPS hinged (Option) of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000258530
$3,064.25
Retrofitkitrolloverbar 1000258530×1
21000514905
$44.67
Automatic belt orange - 1000514905×1
31000050585Not stocked
cotter pin×2
41000179300
$16.06
LOCKING PIN - 1000179300×2
51000019126Not stocked
u-washer×6
61000085441
$1.48
6-piont screw M14x50 10.9DacroDIN933 - 1000085441×2
71000082563
$0.90
HEXAGON NUT - 1000082563×2
81000329522
$98.96
BRACKET - 1000329522×1
91000015372Not stocked
hex screw×6
101000082609
$0.73
lock washer - 1000082609×6
111000049219Not stocked
washer×6
121000256135
$88.41
BRACKET - 1000256135×1
131000068810Not stocked
felt glider×2
141000196919
$1.80
COVER - 1000196919×4
