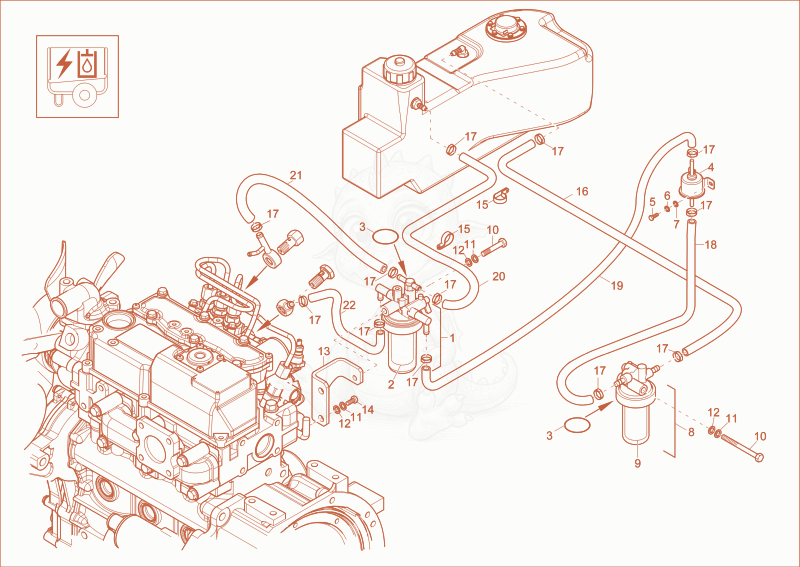

803 FUEL SYSTEM (Option) Diagram

Exploded parts diagram of the FUEL SYSTEM (Option) of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000133262
$84.21
Fuel filter - 1000133262×1
21000147873
$13.92
FUEL FILTER INSERT - 1000147873×1
31000019708
$1.69
O-RING - 1000019708×2
41000093894
$299.72
FUEL PUMP - 1000093894×1
51000020553Not stocked
hex screw×2
61000015430Not stocked
washer×2
71000015436Not stocked
lock washer×2
81000159923
$91.84
WATER SEPERATOR - 1000159923×1
91000159924
$20.19
Filter - 1000159924×1
101000022334Not stocked
hex screw×2
111000015431Not stocked
washer×4
121000015437Not stocked
lock washer×4
131000301678
$14.05
bracket dieselfilter - 1000301678×1
141000085495
$0.07
cheese head screw M 8x16-8.8 A2C - 1000085495×2
151000151200
$10.77
pipe clamp RSGU 1.13/20 - 1000151200×2
161000411932Not stocked
fuel line×0.7
171000267809
$3.22
clamp hose 15.3 - 1000267809×12
181000411932Not stocked
fuel line×0.5
191000411932Not stocked
fuel line×0.35
201000411932Not stocked
fuel line×1
211000411932Not stocked
fuel line×0.4
221000411932Not stocked
fuel line×0.4
