803 TURNTABLE DRIVE UNIT INSTALLATION Diagram

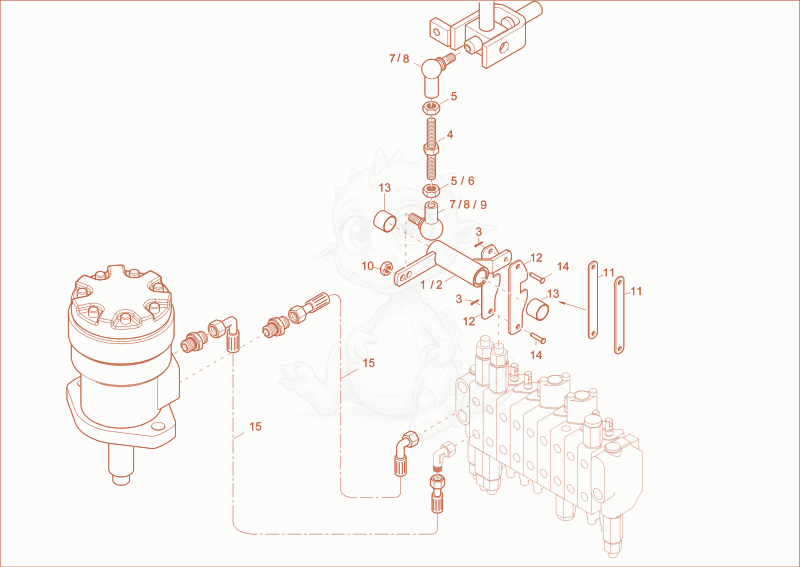

Exploded parts diagram of the TURNTABLE DRIVE UNIT INSTALLATION of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000172114Not stocked
turn lever×1
21000279235
$42.01
turn lever - 1000279235×1
31000151228
$1.03
cotter pin - 1000151228×2
41000428685Not stocked
thread rod×1
51000013021Not stocked
hexagon nut×2
61000128104
$1.11
nut M8LHA2C - 1000128104×1
71000015635
$20.00
BALL AND SOCKET - 1000015635×2
81000222383
$8.59
ball and socket AS13 - 1000222383×2
91000280212
$8.70
7all and socket DIN71802-A13-M8L-CS-DK - 1000280212×1
101000015416
$0.71
DIN985-M8-8-A2C - 1000015416×1
111000150903
$4.88
plate - 1000150903×2
121000249287
$4.59
plate - 1000249287×2
131000151242
$9.90
slide bearing 17x19x15 - 1000151242×2
141000150905
$8.70
PIN - 1000150905×2
151000076712
$14.19
SLHYDR 2SC 8,0PN10 90 PN10 0 L500,0 0 - 1000076712×2
