803 TRAVELLING GEAR INSTALLATION Diagram

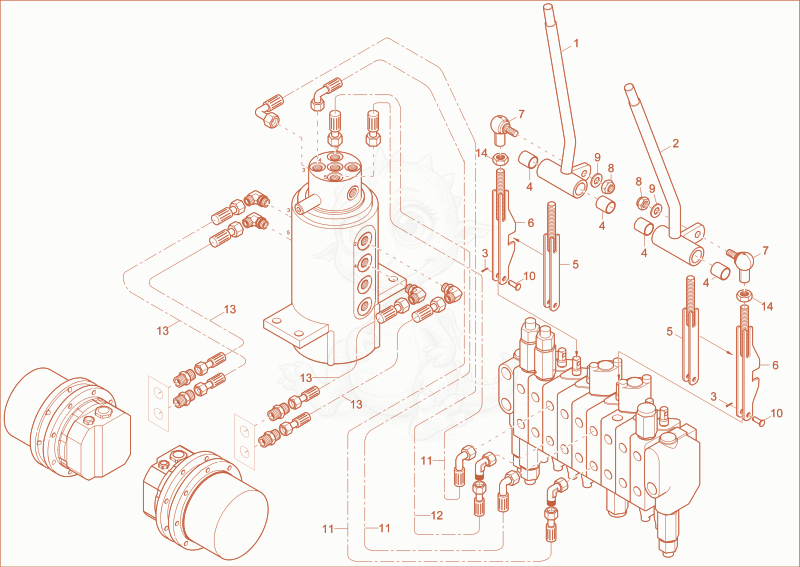

Exploded parts diagram of the TRAVELLING GEAR INSTALLATION of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000232583
$47.75
SHIFT LEVER - 1000232583×1
21000232584
$43.36
SHIFT LEVER - 1000232584×1
31000151228
$1.03
cotter pin - 1000151228×2
41000151351
$6.80
SLIDE BEARING - 1000151351×4
51000232591
$29.89
thread rod - 1000232591×2
61000249331
$25.21
thread rod - 1000249331×2
71000222383
$8.59
ball and socket AS13 - 1000222383×2
81000015416
$0.71
DIN985-M8-8-A2C - 1000015416×2
91000015431Not stocked
washer×2
101000150905
$8.70
PIN - 1000150905×2
111000154313
$38.07
SLHYDR 2SC 10 PN10 90 PN10 0 L450,0 - 1000154313×3
121000154314
$37.47
SLHYDR 2SC 10 PN10 90 PN10 0 L400,0 - 1000154314×1
131000154316
$45.94
SLHYDR 2SC 10 PN10 0 PN10 0 L550,0F - 1000154316×4
141000013021Not stocked
hexagon nut×2
