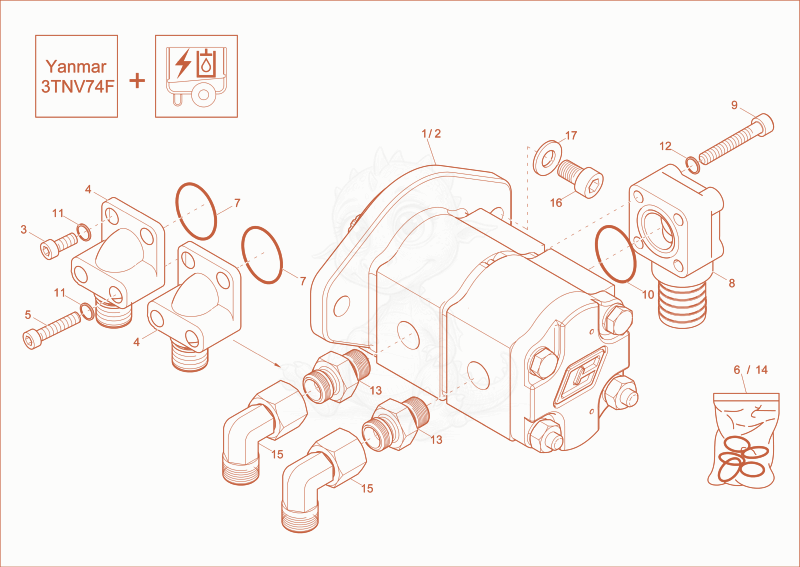

803 HYDRAULIC PUMP (Option) Diagram

Exploded parts diagram of the HYDRAULIC PUMP (Option) of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000284085
$478.49
Gearpump 1000284085×1
21000422297Not stocked
gear pump×1
31000085456
$0.05
allen screw M6x20-8.8 A2C-DIN912 - 1000085456×4
41000151247
$39.53
BFW12L/LK35OMDA3C - 1000151247×2
51000015398Not stocked
cheese head screw×4
61000160913
$272.05
seal kit gear pump - 1000160913×1
71000015669
$0.20
O-RING - 1000015669×2
81000150208
$59.74
pump flange - 1000150208×1
91000085458
$0.73
Screw M6x40-8.8 A2C DIN912 - 1000085458×1
101000160844
$0.54
O-RING - 1000160844×1
111000015444Not stocked
spring washer×8
121000015444Not stocked
spring washer×4
131000082969
$4.07
GE12LR3/8OROMDA3C - 1000082969×2
141000464242Not stocked
seal kit×1
151000000573Not stocked
screw joint×2
161000289744
$126.03
screw - 1000289744×2
171000015449Not stocked
northlock disc×2
