803 pilot stand Diagram

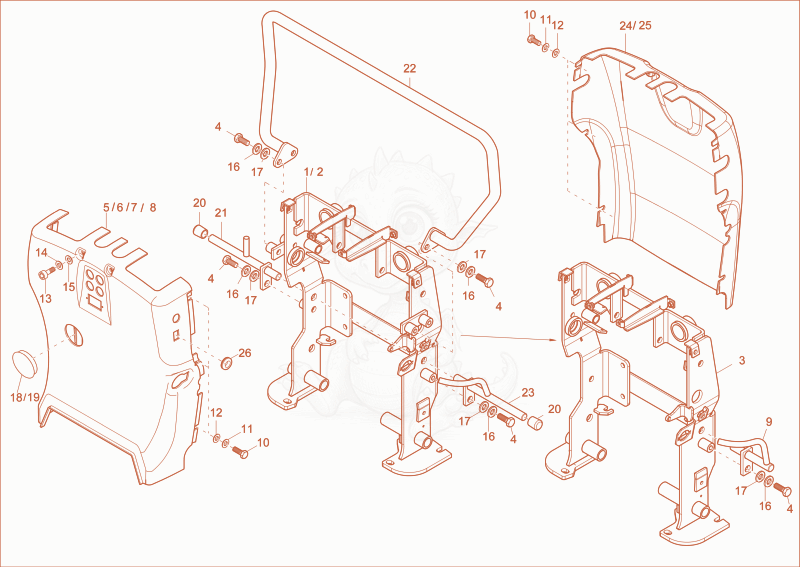

Exploded parts diagram of the pilot stand of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000256406
$744.78
Rack 1000256406×1
21000371997Not stocked
rack×1
31000444636Not stocked
rack×1
41000085433
$1.42
HEX SCREW - 1000085433×4
51000257438
$323.99
pilot stand bonnet - 1000257438×1
61000256404
$256.86
pilot stand bonnet - 1000256404×1
71000447392Not stocked
pilot stand bonnet×1
81000491428Not stocked
pilot stand bonnet×1
91000259807
$34.40
protection - 1000259807×1
101000013008Not stocked
hex screw×6
111000015437Not stocked
lock washer×6
121000015431Not stocked
washer×6
131000085456
$0.05
allen screw M6x20-8.8 A2C-DIN912 - 1000085456×4
141000015436Not stocked
lock washer×4
151000015430Not stocked
washer×4
161000015438Not stocked
lock washer×4
171000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×4
181000168251
$12.46
PLUG - 1000168251×1
191000327059
$7.51
PLUG - 1000327059×1
201000151246
$0.99
pipe cap - 1000151246×2
211000150982
$63.18
Stop notch - 1000150982×1
221000150911
$222.48
Holder 1000150911×1
231000154550
$66.30
Stop notch - 1000154550×1
241000447391
$242.91
pilot stand bonnet - 1000447391×1
251000443147Not stocked
pilot stand bonnet×1
261000166713
$2.54
RUBBER SLEEVE 12/18/22-4 closed - 1000166713×1
