803 WIRE HARNESS indicator (Option) Diagram

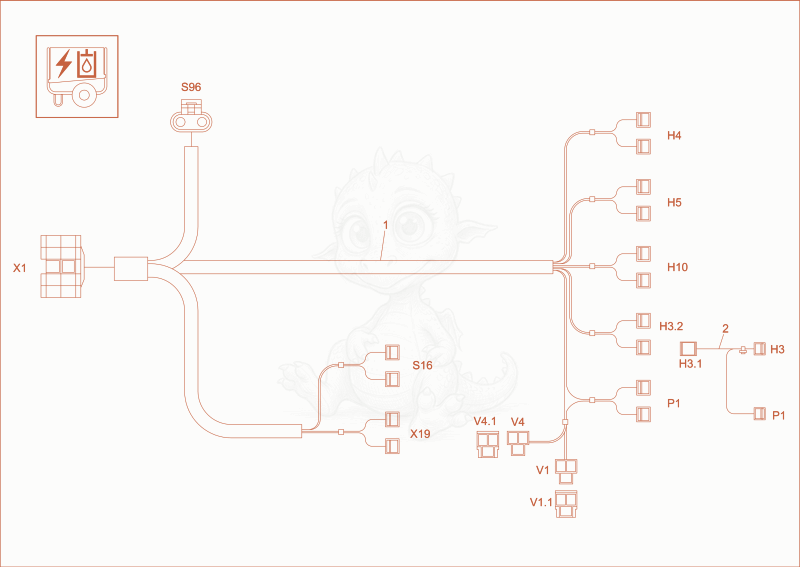

Exploded parts diagram of the WIRE HARNESS indicator (Option) of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000306298
$1,510.69
cable - 1000306298×1
21000331821
$24.99
CABLE - 1000331821×1
H101000027435Not stocked
insulating sleeve×2
H31000019583Not stocked
plug sleeve housing×1
H3.11000085008
$1.91
PLUG HOUSING - 1000085008×1
H3.21000027435Not stocked
insulating sleeve×2
H41000027435Not stocked
insulating sleeve×2
H51000027435Not stocked
insulating sleeve×2
P11000019583Not stocked
plug sleeve housing×1
P11000027435Not stocked
insulating sleeve×2
S161000104405
$1.41
Insulating sleeve - 1000104405×2
S961000110449
$2.46
plug bushing - 1000110449×1
V11000095339
$4.61
plug sleeve housing - 1000095339×1
V1.11000095338
$3.67
plug housing - 1000095338×1
V41000095339
$4.61
plug sleeve housing - 1000095339×1
V4.11000095338
$3.67
plug housing - 1000095338×1
X11000101653
$6.73
plug sleeve housing - 1000101653×1
X191000027435Not stocked
insulating sleeve×2
