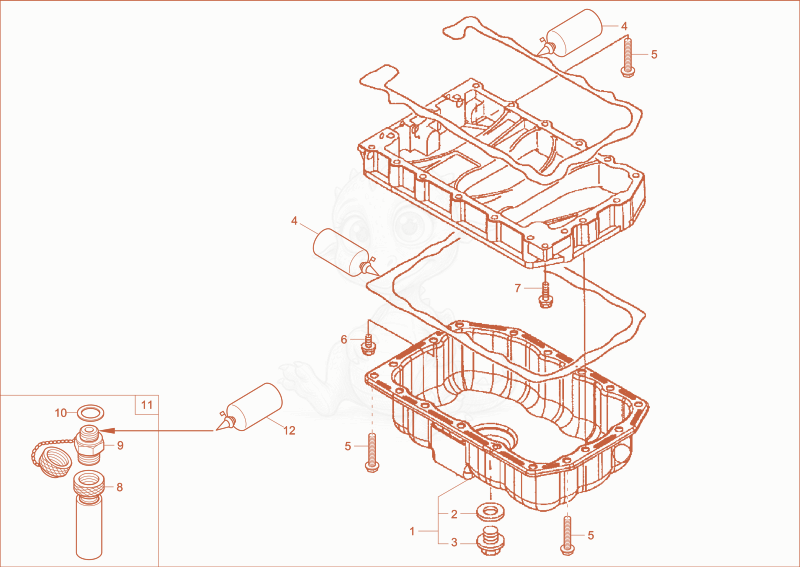

803 oil sump Diagram

Exploded parts diagram of the oil sump of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000150895
$554.64
oil sump - 1000150895×1
21000071058Not stocked
seal ring×1
31000134824
$7.08
LOCK SCREW - 1000134824×1
41000159557Not stocked
sealing compound×1
51000159562
$2.64
screw - 1000159562×1
61000159563
$0.98
screw - 1000159563×17
71000134853
$1.01
screw - 1000134853×1
81000234769
$18.88
drain coupling - 1000234769×1
91000254454
$22.56
drain coupling M16x1,5 - 1000254454×1
101000095220
$5.75
screw seal - 1000095220×1
111000262753
$65.09
service valve motor oil - 1000262753×1
121000307442Not stocked
pipe seal×1
