803 blade cylinder Diagram

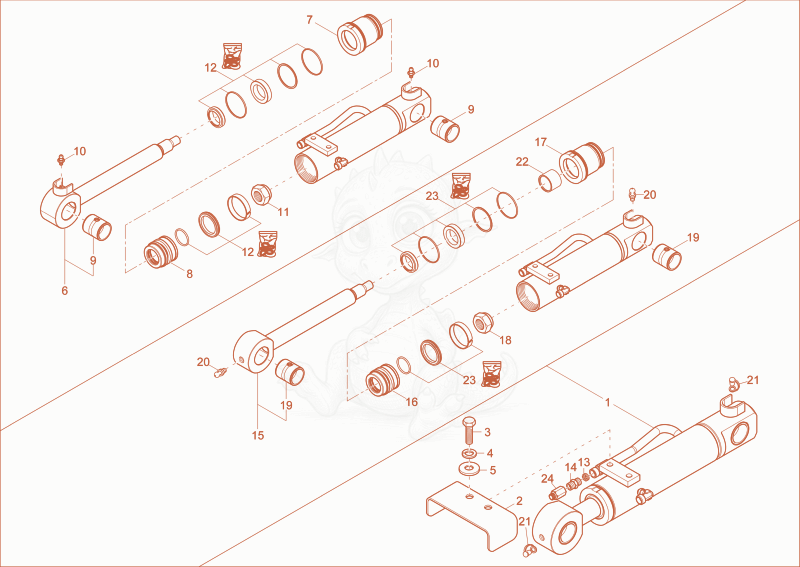

Exploded parts diagram of the blade cylinder of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000420058Not stocked
blade cylinder×1
21000154027
$67.66
COVER - 1000154027×1
31000013009Not stocked
hex screw×2
41000015438Not stocked
lock washer×2
51000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×2
61000159621
$519.08
PISTON ROD - 1000159621×1
71000364632Not stocked
guide bushing×1
81000159609
$81.51
PISTON - 1000159609×1
91000165322
$58.60
STEEL BUSHING - 1000165322×2
101000072959
$3.46
grease nipple - 1000072959×2
111000159608
$9.32
Nut - 1000159608×1
121000364633Not stocked
cylinder seal kit×1
131000160899
$65.37
HOSE BURST PROTECTION - 1000160899×1
141000015489Not stocked
screw joint×1
151000403708Not stocked
piston rod×1
161000403742
$51.58
Piston - 1000403742×1
171000403744Not stocked
guide bushing×1
181000399498
$38.26
Nut - 1000399498×1
191000403740
$61.85
Bushing - 1000403740×2
201000015475Not stocked
grease nipple×2
211000015480Not stocked
cap grease nipple×2
221000403747Not stocked
slide bearing×1
231000403709Not stocked
seal kit×1
241000080118
$7.80
EXTENSION - 1000080118×1
