803 bucket cylinder Diagram

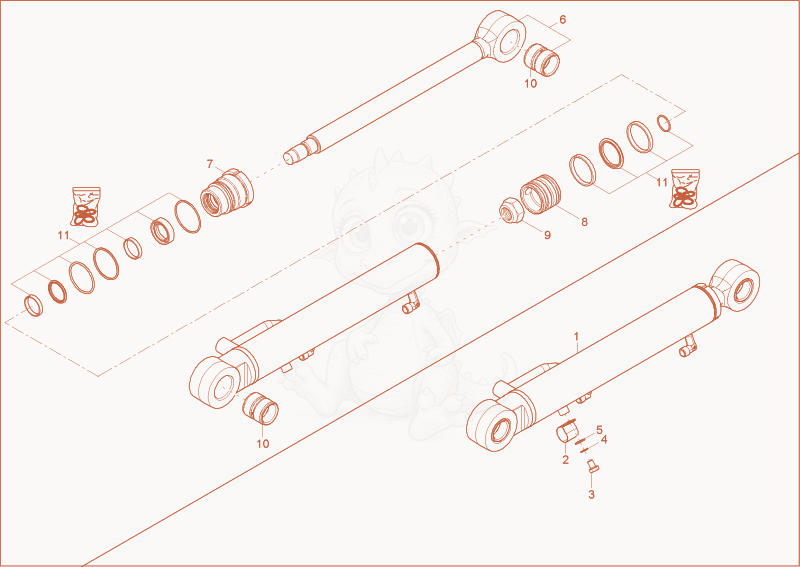

Exploded parts diagram of the bucket cylinder of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000187413
$1,196.44
BUCKET CYLINDER - 1000187413×1
21000068818Not stocked
clamp×1
31000020553Not stocked
hex screw×1
41000015436Not stocked
lock washer×1
51000015430Not stocked
washer×1
61000159622
$416.78
Pistonrod 1000159622×1
71000159610
$158.46
GUIDE BUSHING - 1000159610×1
81000159609
$81.51
PISTON - 1000159609×1
91000159608
$9.32
Nut - 1000159608×1
101000165322
$58.60
STEEL BUSHING - 1000165322×2
111000276852
$86.80
cylinder seal kit - 1000276852×1
