EW65

EW65 BRAKE VALVE Diagram

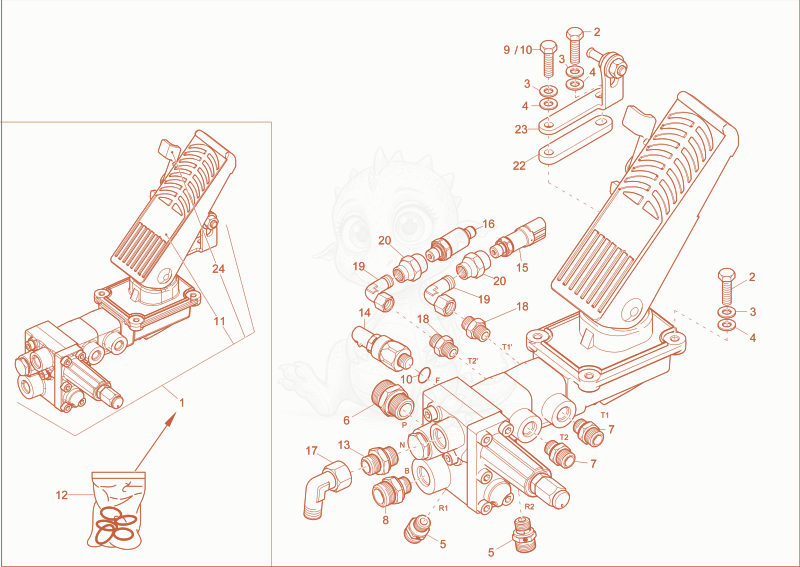

Exploded parts diagram of the BRAKE VALVE of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000303717
    $2,540.18
    Brakevalve 1000303717×1
  • 21000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
  • 31000015437Not stocked
    lock washer×5
  • 41000015431Not stocked
    washer×5
  • 51000083062
    $14.89
    GEO12LM14X1,5OMDA3C - 1000083062×2
  • 61000128409
    $51.25
    GEO15LM22X1,5OMDA3C - 1000128409×1
  • 71000108438
    $15.82
    GE08LM14X1,5OROMDA3C - 1000108438×2
  • 81000155383
    $5.97
    GE15LM18X1,5OROMDA3C - 1000155383×1
  • 91000013008Not stocked
    hex screw×1
  • 101000085392
    $0.83
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×1
  • 111000266056
    $50.67
    rubber cover plate - 1000266056×1
  • 121000171415
    $180.58
    seal kit - 1000171415×1
  • 131000117363
    $18.36
    GEO12LM18X1,5OMDA3C - 1000117363×1
  • 141000304307
    $119.58
    PRESSURE SWITCH - 1000304307×1
  • 151000312659Not stocked
    pressure sensor×1
  • 161000303206
    $177.94
    PRESSURE SENSOR - 1000303206×1
  • 171000000573Not stocked
    screw joint×1
  • 181000015488Not stocked
    screw joint×2
  • 191000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 201000235328
    $56.65
    Screw Joint - 1000235328×2
  • 211000124948
    $12.46
    screw seal - 1000124948×2
  • 221000375569
    $29.15
    shim - 1000375569×1
  • 231000376277
    $141.58
    pin - 1000376277×1
  • 241000383598
    $167.27
    lever - 1000383598×1
