EW65

EW65 blade cylinder (OPTION) Diagram

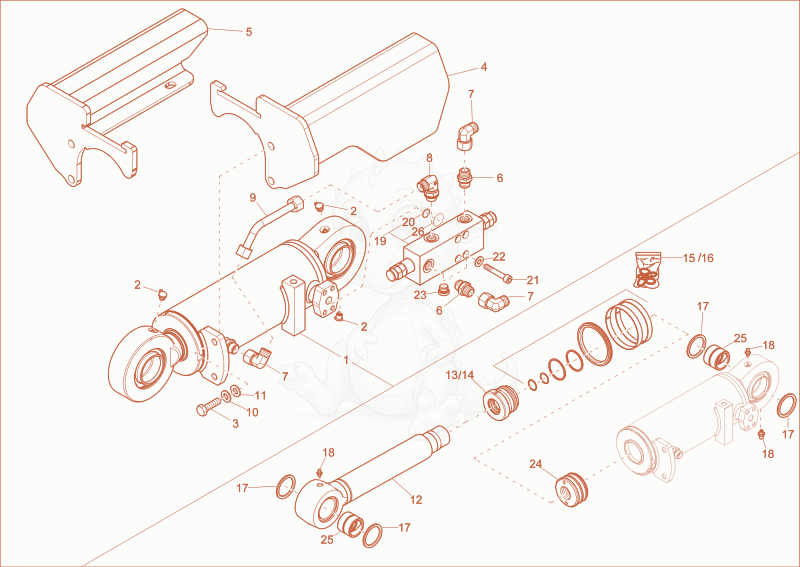

Exploded parts diagram of the blade cylinder (OPTION) of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000372051
    $1,091.09
    blade cylinder - 1000372051×2
  • 21000015480Not stocked
    cap grease nipple×3
  • 31000085418
    $9.74
    hex screw - 1000085418×3
  • 41000364483
    $441.66
    COVER - 1000364483×1
  • 51000364484
    $441.66
    COVER - 1000364484×1
  • 61000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×2
  • 71000000573Not stocked
    screw joint×3
  • 81000151592
    $19.52
    WEE12LROMDA3C - 1000151592×1
  • 91000341794Not stocked
    pipe line×1
  • 101000082609
    $0.73
    lock washer - 1000082609×1
  • 111000049219Not stocked
    washer×3
  • 121000348173Not stocked
    piston rod×3
  • 131000348180Not stocked
    guide bushing×2
  • 141000378923Not stocked
    guide bushing×1
  • 151000348234Not stocked
    cylinder seal kit×2
  • 161000378899Not stocked
    seal kit×1
  • 171000269851
    $7.02
    lock ring - 1000269851×4
  • 181000319259Not stocked
    grease nipple×8
  • 191000331375Not stocked
    sinkbrake valve×6
  • 201000090469
    $4.02
    O-RING - 1000090469×2
  • 211000048172Not stocked
    cheese head screw×8
  • 221000015437Not stocked
    lock washer×8
  • 231000020797Not stocked
    screw joint×4
  • 241000348212
    $197.37
    PISTON - 1000348212×2
  • 251000113476
    $70.94
    PIVOTING BEARING - 1000113476×2
  • 261000406200
    $14.83
    support ring - 1000406200×2
