EW65

EW65 blade cylinder Diagram

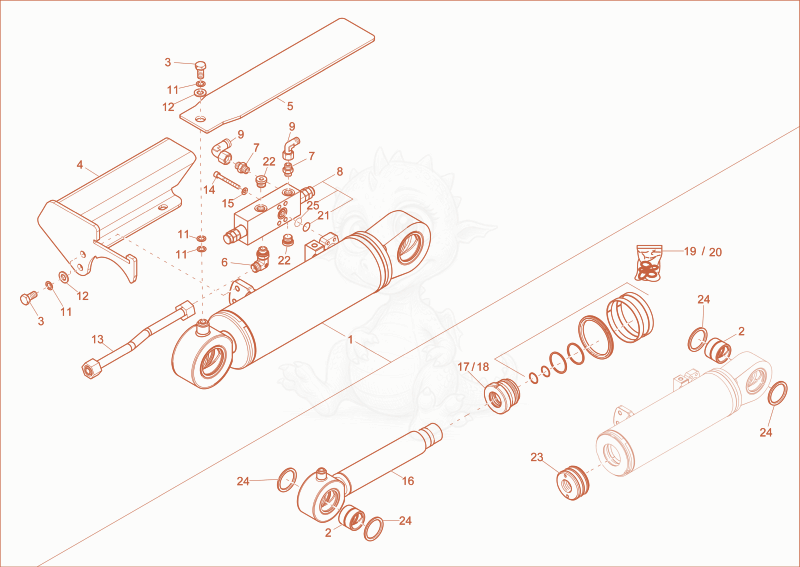

Exploded parts diagram of the blade cylinder of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000372050Not stocked
    blade cylinder×1
  • 21000348396
    $177.93
    BUSHING - 1000348396×2
  • 31000085418
    $9.74
    hex screw - 1000085418×3
  • 41000364358
    $277.93
    cover - 1000364358×1
  • 51000364060
    $204.41
    rail - 1000364060×1
  • 61000151592
    $19.52
    WEE12LROMDA3C - 1000151592×1
  • 71000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×1
  • 81000331375Not stocked
    sinkbrake valve×1
  • 91000000573Not stocked
    screw joint×3
  • 101000020797Not stocked
    screw joint×1
  • 111000082609
    $0.73
    lock washer - 1000082609×5
  • 121000049219Not stocked
    washer×3
  • 131000352012Not stocked
    pipe line×1
  • 141000048172Not stocked
    cheese head screw×4
  • 151000015437Not stocked
    lock washer×4
  • 161000348172Not stocked
    piston rod×1
  • 171000348179Not stocked
    guide bushing×1
  • 181000378924
    $189.33
    guide bushing - 1000378924×1
  • 191000348231Not stocked
    cylinder seal kit×1
  • 201000378902
    $173.14
    seal kit - 1000378902×1
  • 211000090469
    $4.02
    O-RING - 1000090469×1
  • 221000020797Not stocked
    screw joint×2
  • 231000348208
    $249.38
    PISTON - 1000348208×1
  • 241000015709Not stocked
    pin gasket×4
  • 251000406200
    $14.83
    support ring - 1000406200×1
