EW65 BOOM CYLINDER Diagram

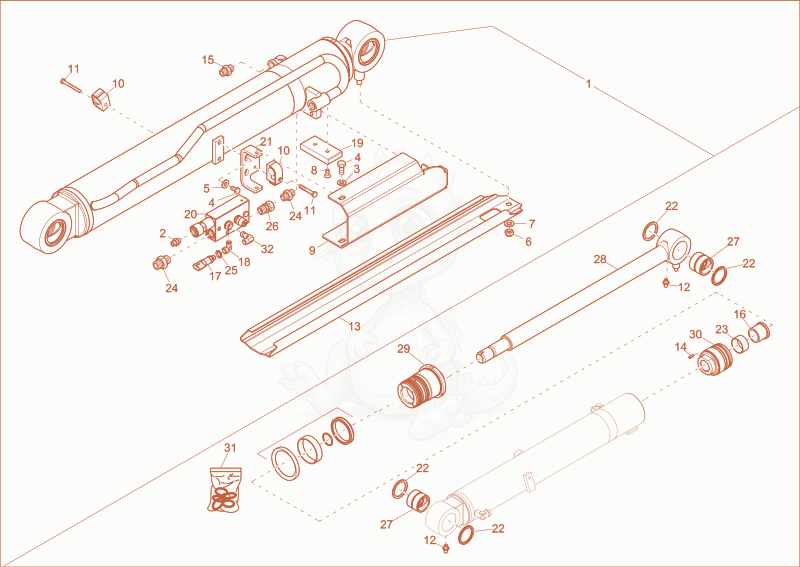

Exploded parts diagram of the BOOM CYLINDER of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000374945
    $2,203.01
    EW65 lifting arm cylinder - 1000374945×1
  • 21000015488Not stocked
    screw joint×1
  • 31000094974
    $0.70
    washer M10-DIN134 - 1000094974×2
  • 41000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×5
  • 51000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×3
  • 61000020127Not stocked
    hexagon nut×1
  • 71000049219Not stocked
    washer×1
  • 81000015373Not stocked
    countersunk screw×2
  • 91000375258
    $132.88
    cover - 1000375258×1
  • 101000375312
    $23.01
    clamp - 1000375312×2
  • 111000018447Not stocked
    hex screw×2
  • 121000319259Not stocked
    grease nipple×2
  • 131000368356
    $93.61
    protecting rail - 1000368356×1
  • 141000187949
    $7.02
    thread pin - 1000187949×1
  • 151000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×1
  • 161000236379
    $76.97
    bushing shock absorber - 1000236379×1
  • 171000312658Not stocked
    pressure sensor×1
  • 181000251624
    $35.82
    WEE1/4"-1/4" - 1000251624×1
  • 191000146695
    $36.62
    guide-element - 1000146695×1
  • 201000311938Not stocked
    hose burst valve×1
  • 211000375255Not stocked
    fixing plate×1
  • 221000015709Not stocked
    pin gasket×4
  • 231000236370
    $378.43
    shock absorber ring - 1000236370×1
  • 241000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 251000124948
    $12.46
    screw seal - 1000124948×1
  • 261000015524
    $9.05
    EGE18LREDA3C - 1000015524×1
  • 271000015601Not stocked
    steel bushing×2
  • 281000393544
    $889.14
    piston rod - 1000393544×1
  • 291000348193Not stocked
    guide bushing×1
  • 301000348224
    $191.50
    PISTON - 1000348224×1
  • 311000348239Not stocked
    cylinder seal kit×1
  • 321000060903
    $27.33
    WEE8LROMDA3C - 1000060903×1
