EW65 DIPPER ARM CYLINDER Diagram

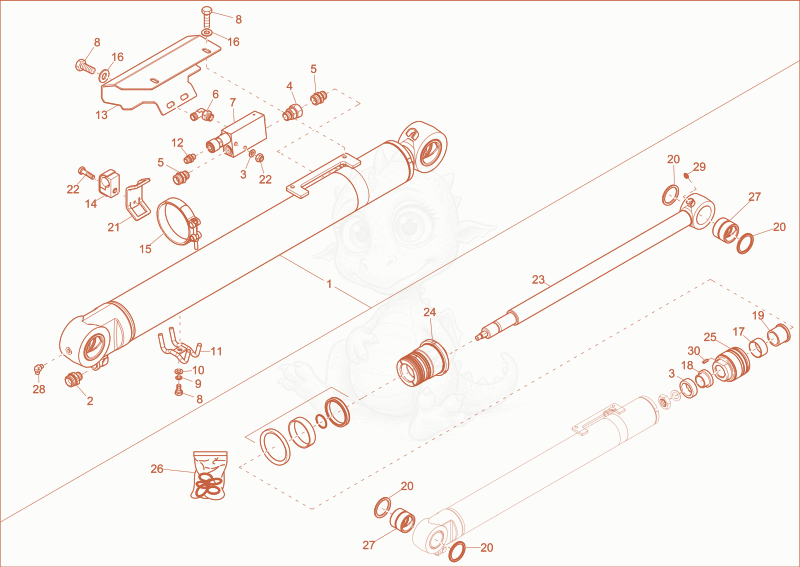

Exploded parts diagram of the DIPPER ARM CYLINDER of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000374947
    $1,549.05
    DIPPER ARM CYLINDER - 1000374947×1
  • 21000082865
    $12.60
    GE22LR1/2EDOMDA3C - 1000082865×1
  • 31000348340Not stocked
    shock absorber ring×1
  • 41000015524
    $9.05
    EGE18LREDA3C - 1000015524×1
  • 51000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 61000060905
    $24.97
    WEE10LROMDA3C - 1000060905×1
  • 71000311939Not stocked
    hose burst valve×1
  • 81000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×5
  • 91000015438Not stocked
    lock washer×1
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 111000329856Not stocked
    bracket hose×1
  • 121000015490Not stocked
    screw joint×1
  • 131000375259
    $117.85
    cover - 1000375259×1
  • 141000375312
    $23.01
    clamp - 1000375312×1
  • 151000352377Not stocked
    pipe clamp×1
  • 161000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×4
  • 171000348339Not stocked
    shock absorber ring×1
  • 181000113072
    $30.50
    bushing shock absorber - 1000113072×1
  • 191000236379
    $76.97
    bushing shock absorber - 1000236379×1
  • 201000015709Not stocked
    pin gasket×4
  • 211000375256Not stocked
    bracket hose×1
  • 221000018447Not stocked
    hex screw×1
  • 231000393546Not stocked
    piston rod×1
  • 241000348194Not stocked
    guide bushing×1
  • 251000126490
    $183.49
    Piston 1000126490×1
  • 261000348241Not stocked
    cylinder seal kit×1
  • 271000015601Not stocked
    steel bushing×2
  • 281000082861
    $16.09
    WE06LLR1/8A3CX - 1000082861×1
  • 291000319259Not stocked
    grease nipple×1
  • 301000187949
    $7.02
    thread pin - 1000187949×1
