EW65

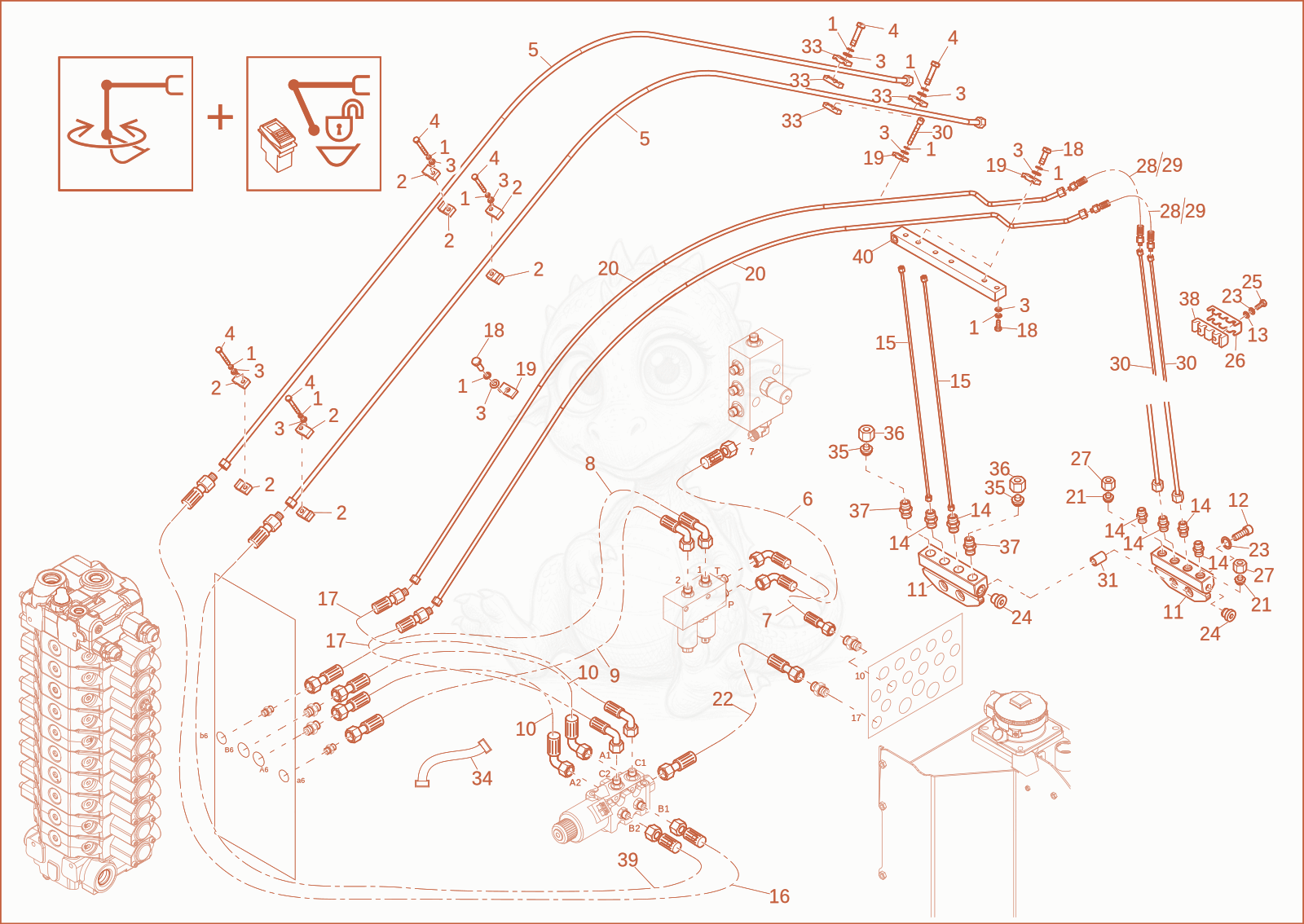

EW65 Pilot circuit Powertilt (Option) Diagram
- 11000015438Not stockedlock washer×10
- PIPE CLAMP - 1000167556×12
- washer 10,5 A2C DIN125 - 1000015432×10
- hex screw - 1000085357×8
- 51000366975Not stockedpipe line×2
- 61000348502Not stockedHose×1
- 71000348504Not stockedHose×1
- 81000348505Not stockedHose×1
- 91000348506Not stockedHose×1
- 101000348565Not stockedHose×2
- 111000439616Not stockeddistributor block×1
- socket head screw M8x12-8.8 A2C DIN912 - 1000085493×2
- 131000015431Not stockedwasher×2
- 141000015490Not stockedscrew joint×4
- 151000315773Not stockedpipe line×2
- 161000387548Not stockedHose×1
- 171000374330Not stockedHose×2
- 181000015348Not stockedhex screw×5
- pipe clamp - 1000307957×4
- 201000366974Not stockedpipe line×2
- VKA10LA3C - 1000082799×2
- SLHYDR 1SCP6,0PN8 0 PN8 90 L1300 0 - 1000076309×1
- 231000015437Not stockedlock washer×4
- VSTI1/8EDA3C - 1000082827×2
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
- pipe clamp - 1000379795×1
- M10LA3CX - 1000082838×2
- 281000367521Not stockedHose×2
- 291000367522Not stockedHose×2
- 301000315774Not stockedpipe line×1
- pipe - 1000307953×2
- screw - 1000085506×1
- 331000329435Not stockedpipe clamp×4
- 341000365804Not stockedlock strap×1
- VKA08A3C - 1000083043×2
- 361000015481Not stockedunion nut×2
- 371000015488Not stockedscrew joint×2
- protecting rubber - 1000374587×1
- 391000387549Not stockedHose×1
- BLOC - 1000380065×1
