EW65

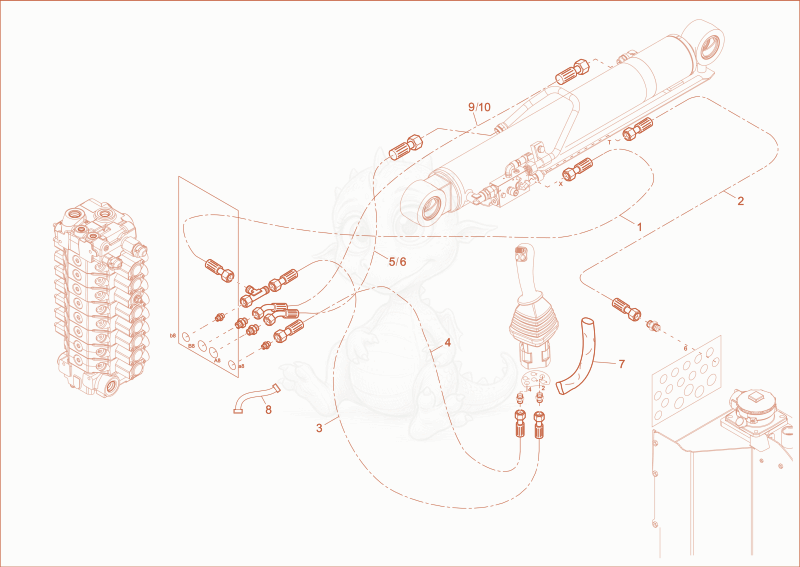

EW65 LIFTING BOOM OPERATION Diagram

Exploded parts diagram of the LIFTING BOOM OPERATION of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000374007Not stocked
    Hose×1
  • 21000374008Not stocked
    Hose×1
  • 31000324100Not stocked
    Hose×1
  • 41000324101Not stocked
    Hose×1
  • 51000348353Not stocked
    Hose×1
  • 61000373999Not stocked
    Hose×1
  • 71000277618
    $22.41
    protecting hose black - 1000277618×1
  • 81000347080Not stocked
    lock strap×1
  • 91000348542Not stocked
    Hose×1
  • 101000374000Not stocked
    Hose×1
