EW65

EW65 quick hitch (OPTION) Diagram

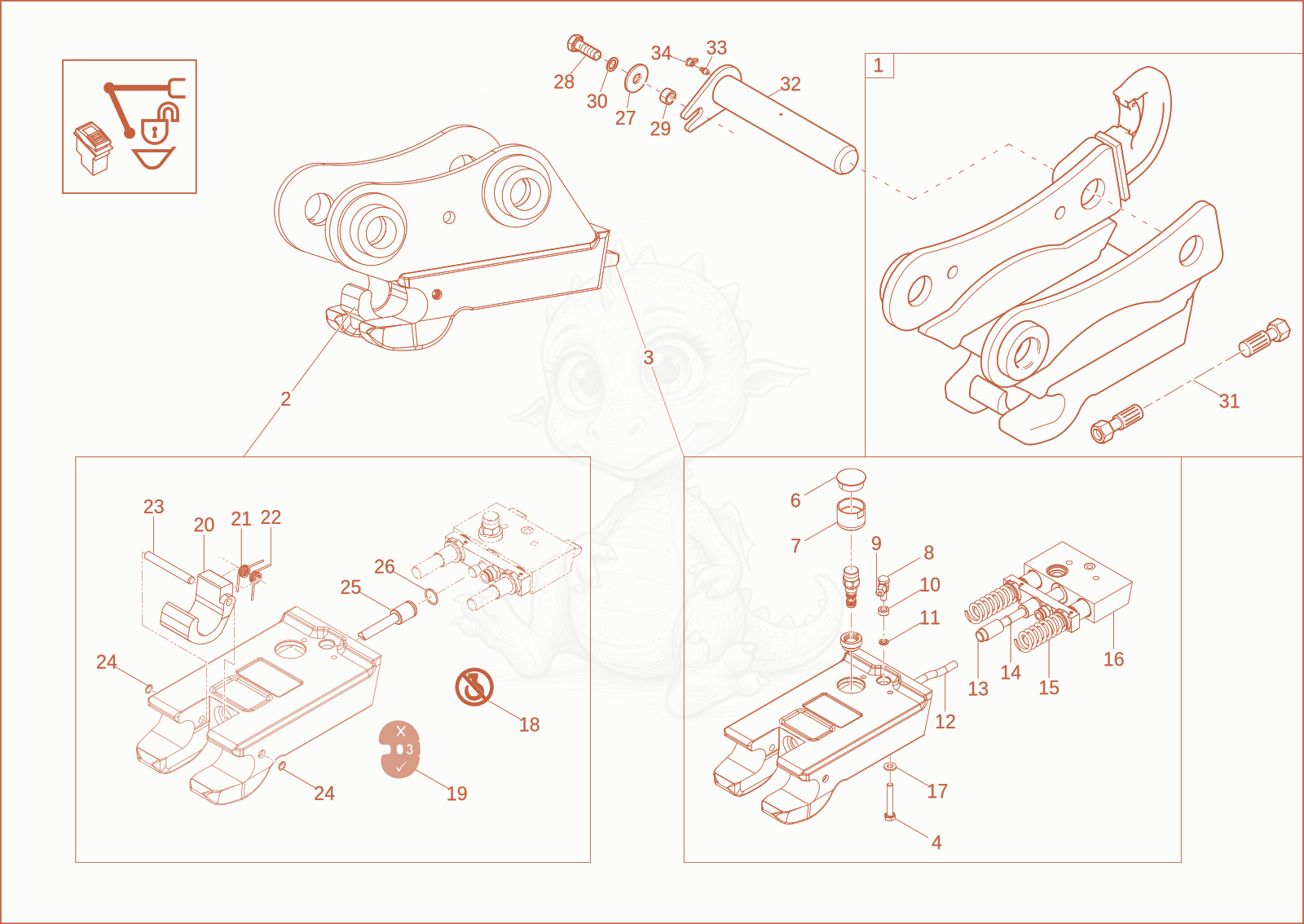

Exploded parts diagram of the quick hitch (OPTION) of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000454622Not stocked
    quick hitch×1
  • 21000462830Not stocked
    Service kit×1
  • 31000462828Not stocked
    quick hitch×1
  • 41000461724
    $2.56
    screw - 1000461724×2
  • 61000462904
    $638.10
    Plug - 1000462904×1
  • 71000462832Not stocked
    protecting pipe×1
  • 81000396772Not stocked
    screw joint×1
  • 91000396790Not stocked
    lock cone×4
  • 101000396771
    $11.79
    shim - 1000396771×1
  • 111000396750
    $54.11
    seal - 1000396750×1
  • 121000461725
    $35.81
    pin - 1000461725×1
  • 131000461732Not stocked
    bushing×1
  • 141000084992Not stocked
    bushing×1
  • 151000396781
    $21.37
    spring - 1000396781×2
  • 161000462831
    $2,230.83
    locking - 1000462831×1
  • 171000346444
    $2.17
    WASHER - 1000346444×2
  • 181000461738
    $3.82
    STICKER - 1000461738×1
  • 191000461840
    $10.87
    setter - 1000461840×1
  • 201000461792
    $484.95
    Claw - 1000461792×1
  • 211000461729
    $6.52
    spring - 1000461729×1
  • 221000461728
    $6.52
    spring - 1000461728×1
  • 231000461730
    $4.76
    pin - 1000461730×1
  • 241000461733
    $3.23
    ring - 1000461733×2
  • 251000462795Not stocked
    limit stop×1
  • 261000462796Not stocked
    lock ring×1
  • 271000085613
    $0.10
    washer - 1000085613×2
  • 281000015381Not stocked
    hex screw×2
  • 291000154698
    $4.06
    WASHER - 1000154698×2
  • 301000082609
    $0.73
    lock washer - 1000082609×2
  • 311000449779
    $85.10
    SLHYDR 20405,0PN6 0 PN8 0 L970,0K - 1000449779×1
  • 321000107276
    $128.95
    PIN - 1000107276×2
  • 331000015476Not stocked
    grease nipple×2
  • 341000015480Not stocked
    cap grease nipple×2
