EW65

EW65 Easy Lock Powertlit (Option) Diagram

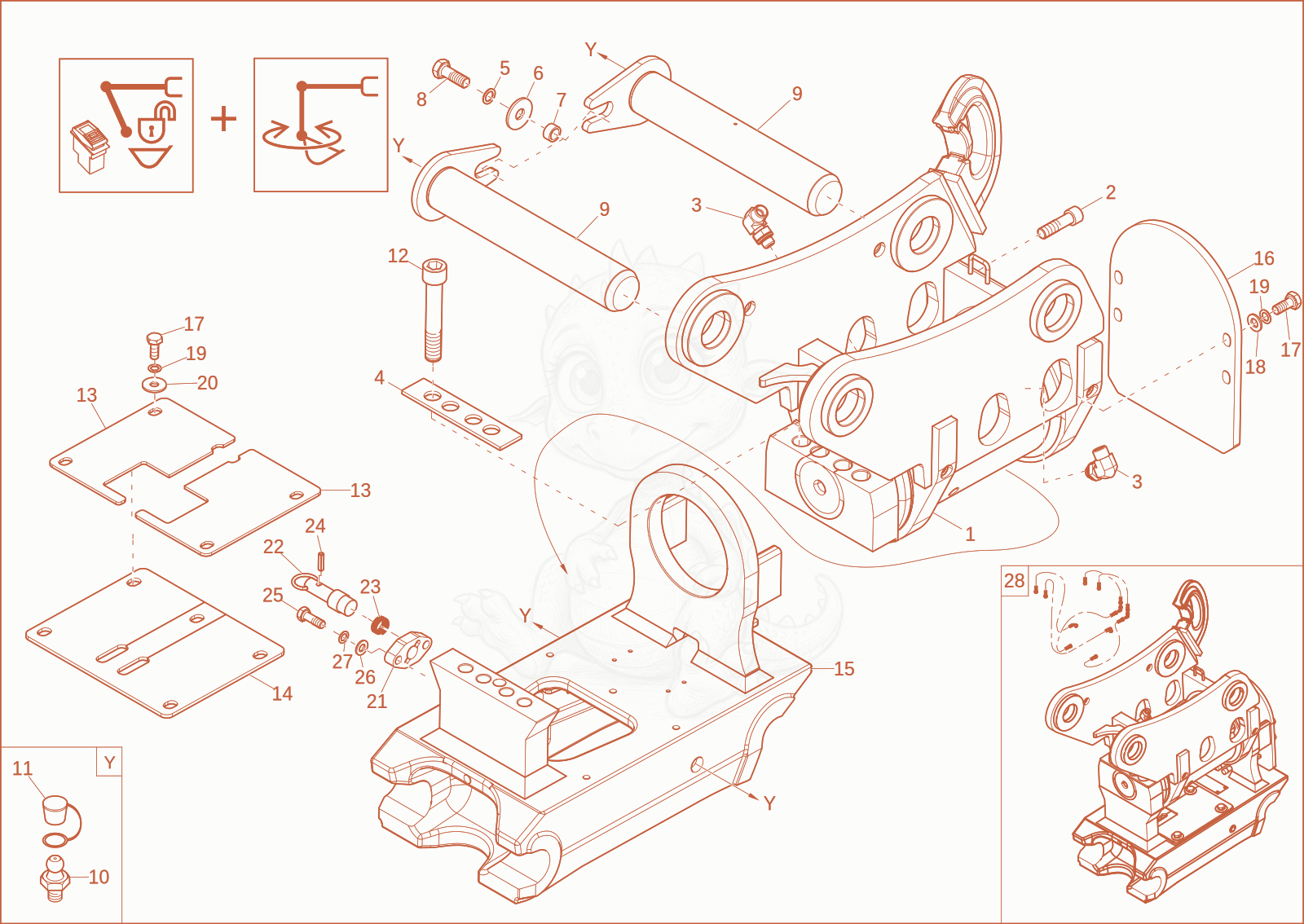

Exploded parts diagram of the Easy Lock Powertlit (Option) of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000351918Not stocked
    POWERTILT×1
  • 21000328078
    $3.03
    SCREW - 1000328078×8
  • 31000060905
    $24.97
    WEE10LROMDA3C - 1000060905×2
  • 41000327871
    $23.90
    plate - 1000327871×1
  • 51000082609
    $0.73
    lock washer - 1000082609×2
  • 61000085613
    $0.10
    washer - 1000085613×2
  • 71000154698
    $4.06
    WASHER - 1000154698×2
  • 81000015381Not stocked
    hex screw×2
  • 91000107276
    $128.95
    PIN - 1000107276×2
  • 101000015476Not stocked
    grease nipple×4
  • 111000015480Not stocked
    cap grease nipple×4
  • 121000328080
    $13.72
    SCREW - 1000328080×4
  • 131000279952
    $41.20
    COVER - 1000279952×2
  • 141000278338
    $110.29
    rubber protection - 1000278338×1
  • 151000345755Not stocked
    adapter plate×1
  • 161000246114
    $192.91
    Protectionplate 1000246114×1
  • 171000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×9
  • 181000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 191000015438Not stocked
    lock washer×9
  • 201000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×5
  • 211000185303
    $5.92
    cover plate - 1000185303×1
  • 221000185290
    $93.54
    PIN - 1000185290×1
  • 231000185302
    $7.99
    pressure spring - 1000185302×1
  • 241000175885
    $1.42
    cotter pin - 1000175885×1
  • 251000015343Not stocked
    hex screw×2
  • 261000015431Not stocked
    washer×2
  • 271000015437Not stocked
    lock washer×2
  • 281000352360Not stocked
    POWERTILT×1
  • 281000352360Not stocked
    POWERTILT×1
  • 291000278341
    $7.93
    clamping strap - 1000278341×1
  • 301000015431Not stocked
    washer×2
  • 311000019136Not stocked
    hex screw×2
