EW65

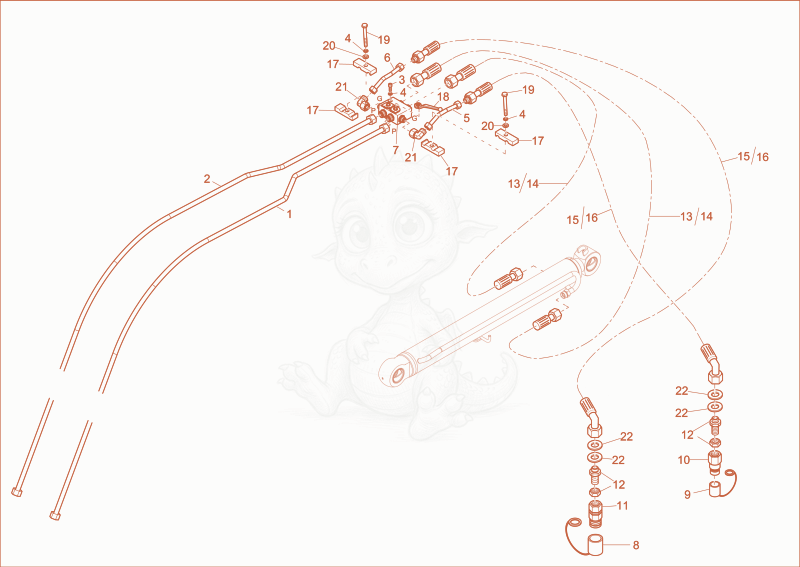

EW65 GRAB EQUIPMENT (OPTION) Diagram

Exploded parts diagram of the GRAB EQUIPMENT (OPTION) of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000316253Not stocked
    pipe line×1
  • 21000316252Not stocked
    pipe line×1
  • 31000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×2
  • 41000015438Not stocked
    lock washer×12
  • 51000341977Not stocked
    hydraulic pipe×1
  • 61000316249Not stocked
    hydraulic pipe×1
  • 71000362605
    $480.41
    gripper - 1000362605×1
  • 81000109417
    $10.12
    Protection cap - 1000109417×1
  • 91000109416
    $8.43
    Protection cap - 1000109416×1
  • 101000109377
    $36.52
    Quick lock coupling 1/2'' Flat Face - 1000109377×1
  • 111000109378
    $54.82
    Quick lock coupling 1/2" Flat Face - 1000109378×1
  • 121000128535
    $36.48
    lock screw connection - 1000128535×2
  • 131000348535Not stocked
    Hose×2
  • 141000348549Not stocked
    Hose×2
  • 151000348509Not stocked
    Hose×2
  • 161000348513Not stocked
    Hose×2
  • 171000329435Not stocked
    pipe clamp×4
  • 181000275091
    $10.25
    handle SW09 - 1000275091×1
  • 191000085357
    $1.08
    hex screw - 1000085357×2
  • 201000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 211000015512Not stocked
    screw joint×2
  • 221000082620
    $0.08
    washer 23 - 1000082620×4
