EW65

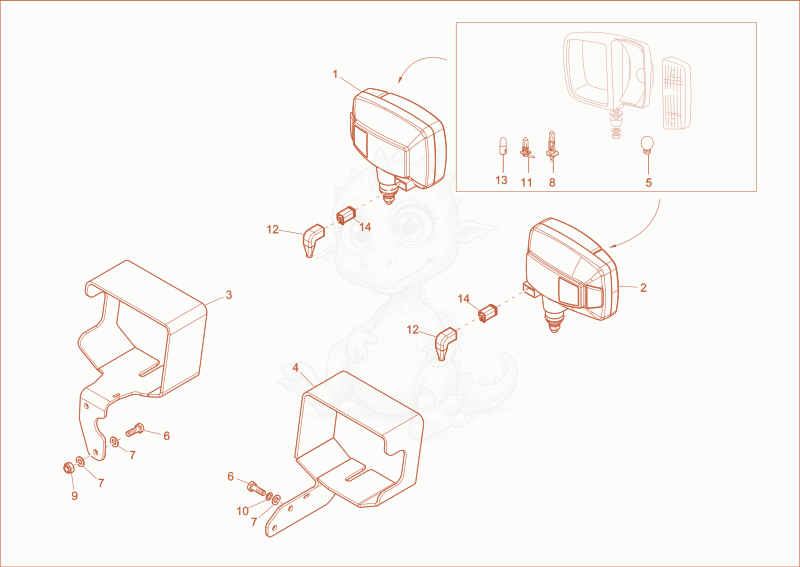

EW65 lighting Diagram

Exploded parts diagram of the lighting of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000378809
    $202.27
    main headlight - 1000378809×1
  • 21000378810Not stocked
    main headlight×1
  • 31000306974
    $186.88
    BRACKET - 1000306974×1
  • 41000306975
    $157.31
    BRACKET - 1000306975×1
  • 51000050449
    $5.52
    bulb - 1000050449×4
  • 61000015348Not stocked
    hex screw×4
  • 71000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×6
  • 81000109712
    $11.39
    bulb - 1000109712×2
  • 91000020127Not stocked
    hexagon nut×2
  • 101000015438Not stocked
    lock washer×2
  • 111000109711
    $11.14
    bulb - 1000109711×2
  • 121000161712
    $11.54
    protecting cap - 1000161712×2
  • 131000001519
    $1.48
    bulb - 1000001519×2
  • 141000027431Not stocked
    bushing housing×2
