EW65

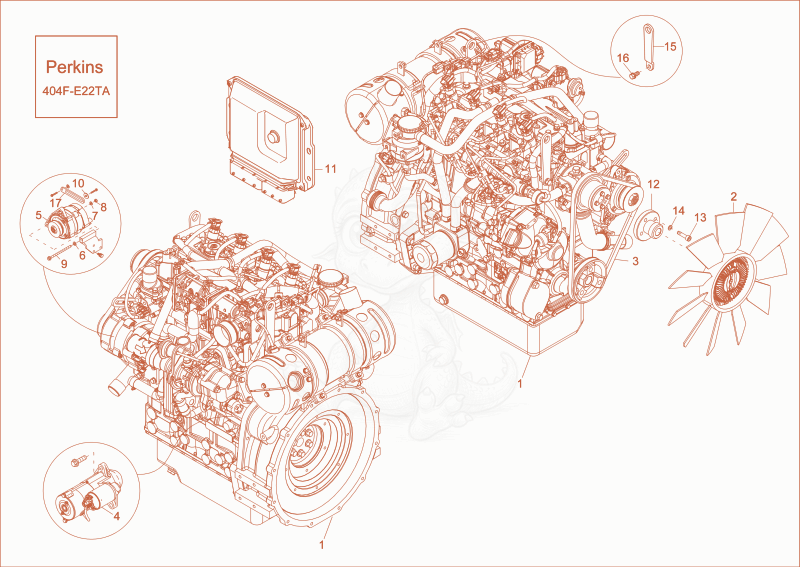

EW65 diesel engine (Option) Diagram

Exploded parts diagram of the diesel engine (Option) of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000361427
    $48,615.16
    Diesel Engine 404F E22Ta Crdi Tier 4 1000361427×1
  • 21000311971
    $326.89
    blower - 1000311971×1
  • 31000387032
    $47.32
    BELT-V - 1000387032×1
  • 41000314629Not stocked
    starter motor×1
  • 51000389161Not stocked
    generator×1
  • 61000244813
    $2.56
    u-washer - 1000244813×1
  • 71000243682
    $2.56
    u-washer - 1000243682×1
  • 81000308572
    $15.15
    NUT - 1000308572×1
  • 91000130639
    $10.24
    Screw - 1000130639×1
  • 101000199468
    $14.09
    u-washer - 1000199468×1
  • 111000389136Not stocked
    control unit×1
  • 121000348247Not stocked
    adapter×1
  • 131000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×4
  • 141000015436Not stocked
    lock washer×4
  • 151000389259Not stocked
    lift eye×2
  • 161000206881
    $14.62
    screw - 1000206881×2
  • 171000402016
    $143.55
    holder - 1000402016×1
