EW65

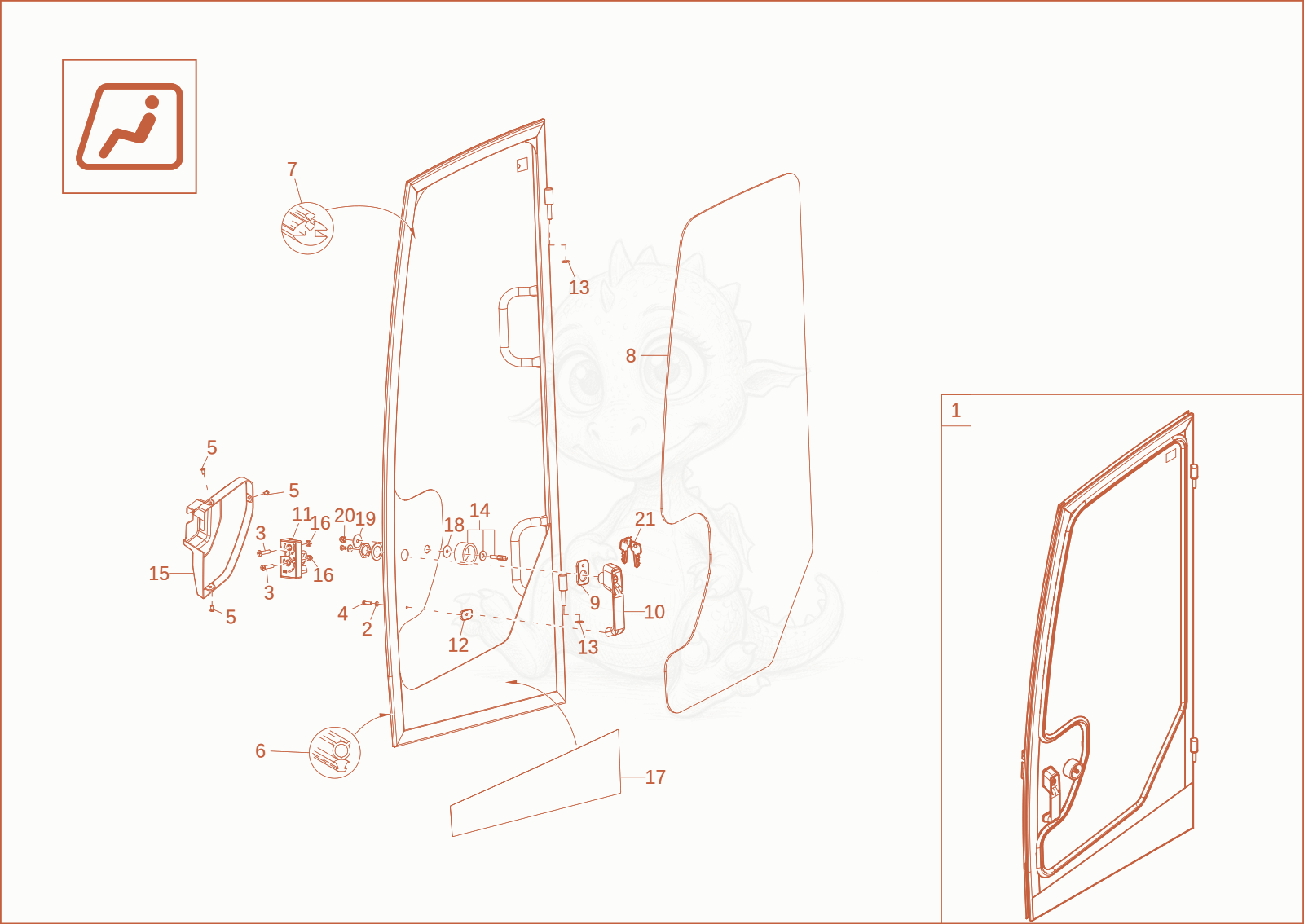

EW65 CABIN DOOR (Option) Diagram

Exploded parts diagram of the CABIN DOOR (Option) of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000390355
    $3,546.73
    CABIN DOOR LEFT COMPLETE - 1000390355×1
  • 21000015430Not stocked
    u-washer×2
  • 31000082349
    $0.83
    countersunk screw - 1000082349×2
  • 41000018400Not stocked
    hex screw×2
  • 51000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×3
  • 61000348171Not stocked
    rubber profile×4
  • 71000017922Not stocked
    rubber profile×4
  • 81000306009Not stocked
    door window×1
  • 91000069533Not stocked
    synthetic trim×1
  • 101000012882
    $49.53
    handle - 1000012882×1
  • 111000003865Not stocked
    lock (w/o keys)×1
  • 121000069532Not stocked
    synthetic trim×1
  • 131000093520
    $2.25
    Washer (Polyamid) - 1000093520×2
  • 141000124883
    $64.26
    Door catch - 1000124883×1
  • 151000306021
    $109.21
    COVERING - 1000306021×1
  • 161000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 171000306041Not stocked
    sticker×1
  • 181000004289Not stocked
    rubber disc×1
  • 191000012879Not stocked
    quad ring×1
  • 201000015414Not stocked
    hexagon nut×1
  • 211000184819
    $14.17
    EZ17 Key without cap - 1000184819×2
