EW65

EW65 WIRE HARNESS CHASSIS, ENGINE Diagram

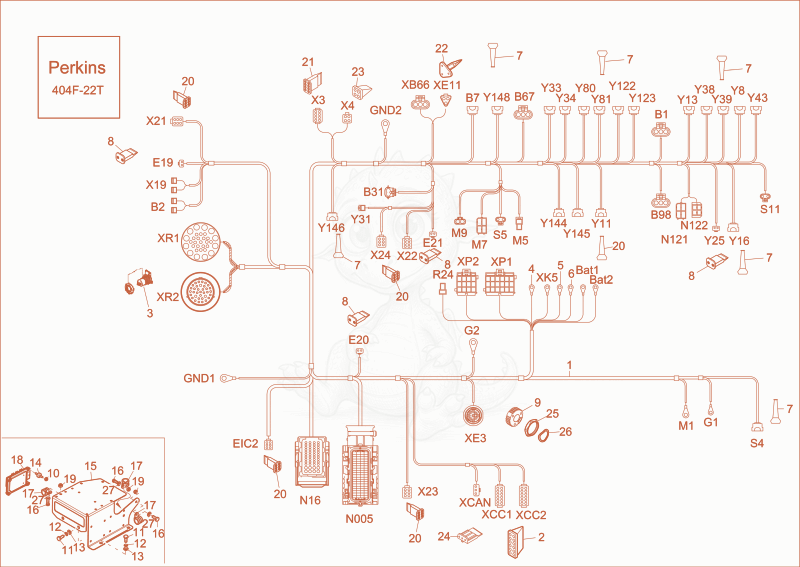

Exploded parts diagram of the WIRE HARNESS CHASSIS, ENGINE of a Wacker Neuson EW65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000408590
    $4,194.93
    wiring harness CHASSIS E14-2_TIER 4 - 1000408590×1
  • 21000148272
    $2.17
    Pin housing - 1000148272×2
  • 31000002902Not stocked
    socket×1
  • 41000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 51000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 61000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 71000027466Not stocked
    protecting cap×17
  • 81000027442Not stocked
    wedge×4
  • 91000277443
    $22.68
    protecting cap - 1000277443×1
  • 101000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×11
  • 111000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 121000015438Not stocked
    lock washer×4
  • 131000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 141000151465
    $4.13
    METAL- RUBBER BUFFER - 1000151465×4
  • 151000348269
    $112.07
    BRACKET - 1000348269×1
  • 161000013008Not stocked
    hex screw×3
  • 171000083248
    $4.47
    hose clamp RSGU 1 23/20 - 1000083248×3
  • 181000320907
    $1,392.66
    CONTROL - 1000320907×1
  • 191000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×3
  • 201000085032
    $1.15
    plug locking - 1000085032×5
  • 211000100723
    $2.77
    wedge - 1000100723×1
  • 221000027433
    $1.57
    locking - 1000027433×1
  • 231000104287
    $0.99
    wedge - 1000104287×1
  • 241000183224
    $1.87
    LOCKING PIN - 1000183224×1
  • 251000312641
    $6.62
    hexagon nut - 1000312641×1
  • 261000312642Not stocked
    washer×1
  • 271000015448Not stocked
    washer×3
  • B11000051989Not stocked
    bushing housing×1
  • B21000027435Not stocked
    insulating sleeve×2
  • B311000346741Not stocked
    bushing housing×1
  • B671000051989Not stocked
    bushing housing×1
  • B71000027332
    $3.80
    housing - 1000027332×1
  • B981000051989Not stocked
    bushing housing×1
  • BAT11000096859
    $1.08
    CABLE LUG - 1000096859×1
  • BAT21000096859
    $1.08
    CABLE LUG - 1000096859×1
  • E191000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • E201000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • E211000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • EIC21000027431Not stocked
    bushing housing×1
  • G11000101271
    $1.91
    cable lug - 1000101271×1
  • G21000107755
    $6.49
    cable lug - 1000107755×1
  • GND11000107755
    $6.49
    cable lug - 1000107755×1
  • GND21000107755
    $6.49
    cable lug - 1000107755×1
  • M11000096859
    $1.08
    CABLE LUG - 1000096859×1
  • M51000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • M71000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • M91000311718
    $6.92
    Housing - 1000311718×1
  • N0051000298636
    $65.32
    Plug Sleeve Housing - 1000298636×1
  • N1211000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • N1221000095324
    $6.16
    plug housing - 1000095324×1
  • N161000306993
    $104.58
    PLUG - 1000306993×1
  • R241000095323
    $3.39
    plug sleeve housing - 1000095323×1
  • S111000110449
    $2.46
    plug bushing - 1000110449×1
  • S41000027410
    $2.43
    Housing - 1000027410×1
  • S51000110449
    $2.46
    plug bushing - 1000110449×1
  • X191000027435Not stocked
    insulating sleeve×2
  • X211000027431Not stocked
    bushing housing×1
  • X221000027431Not stocked
    bushing housing×1
  • X231000027431Not stocked
    bushing housing×1
  • X241000027431Not stocked
    bushing housing×1
  • X31000105113
    $14.50
    bushing housing - 1000105113×1
  • X41000104286
    $11.39
    bushing housing - 1000104286×1
  • XB661000051989Not stocked
    bushing housing×1
  • XCAN1000183222
    $6.86
    bushing housing - 1000183222×1
  • XCC11000148250
    $29.62
    Pin housing - 1000148250×1
  • XCC21000148271
    $30.88
    Pin housing - 1000148271×1
  • XE111000027429Not stocked
    housing×1
  • XE31000298661
    $386.76
    pin housing - 1000298661×1
  • XK51000096859
    $1.08
    CABLE LUG - 1000096859×1
  • XP11000099076
    $2.90
    bushing housing - 1000099076×1
  • XP21000098961
    $3.01
    bushing housing - 1000098961×1
  • XR11000146158
    $257.29
    LUG HOUSING - 1000146158×1
  • XR21000333984Not stocked
    bushing housing×1
  • Y111000027410
    $2.43
    Housing - 1000027410×1
  • Y1221000027410
    $2.43
    Housing - 1000027410×1
  • Y1231000027332
    $3.80
    housing - 1000027332×1
  • Y131000027410
    $2.43
    Housing - 1000027410×1
  • Y1441000027410
    $2.43
    Housing - 1000027410×1
  • Y1451000027332
    $3.80
    housing - 1000027332×1
  • Y1461000027410
    $2.43
    Housing - 1000027410×1
  • Y1481000027410
    $2.43
    Housing - 1000027410×1
  • Y161000027332
    $3.80
    housing - 1000027332×1
  • Y251000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • Y311000085014
    $4.18
    PLUG - 1000085014×1
  • Y331000027410
    $2.43
    Housing - 1000027410×1
  • Y341000027332
    $3.80
    housing - 1000027332×1
  • Y381000027410
    $2.43
    Housing - 1000027410×1
  • Y391000027332
    $3.80
    housing - 1000027332×1
  • Y431000027332
    $3.80
    housing - 1000027332×1
  • Y81000027410
    $2.43
    Housing - 1000027410×1
  • Y801000027410
    $2.43
    Housing - 1000027410×1
  • Y811000027332
    $3.80
    housing - 1000027332×1
