RD25-ROLLER,DOUBLE DRUM

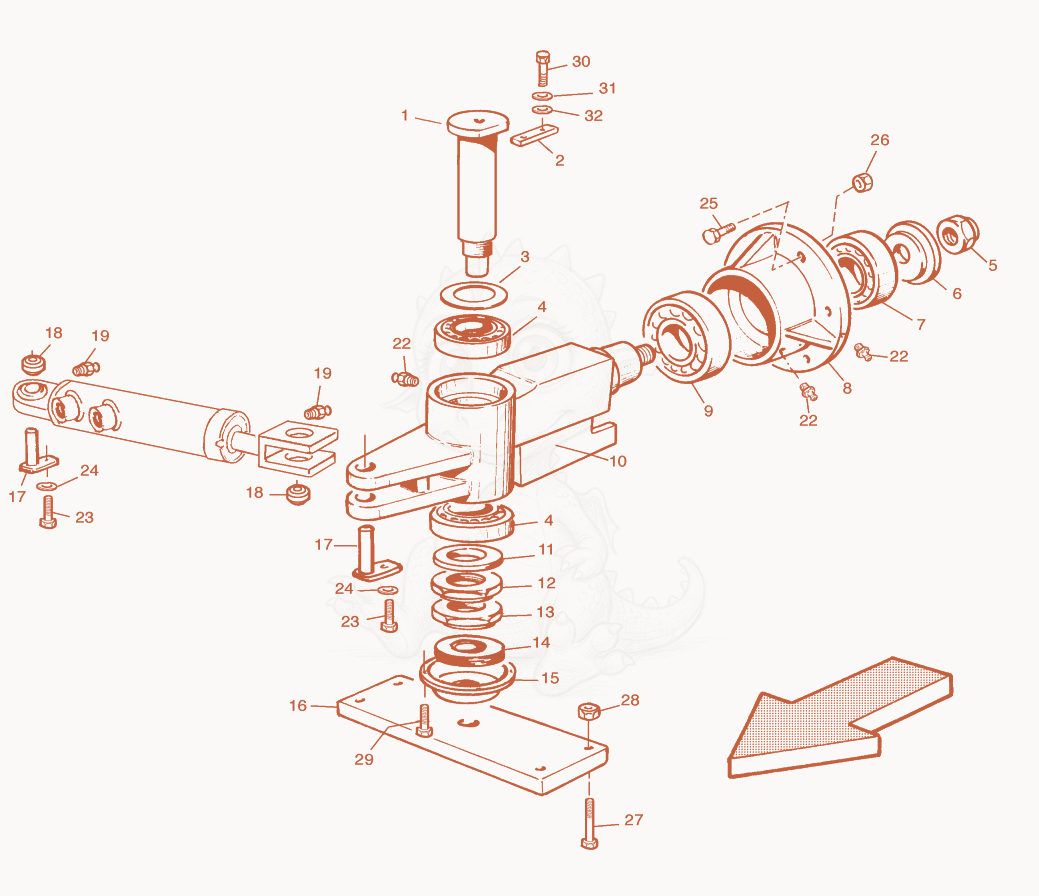

RD25 Steering System Central Articulation Diagram
- PIN-AXLE - 5000113005×1
- Plate - 5000113011×1
- Ring - 5000112714×1
- BEARING - 5000112460×2
- NUT-LOCK - 5000112814×1
- Washer - 5000112842×1
- BEARING - 5000112467×1
- HUB - 5000112643×1
- BEARING - 5000112468×1
- AXLE-HOUSING - 5000113019×1
- Ring - 5000113031×1
- NUT-RING - 5000112465×1
- NUT-RING - 5000112466×1
- SEAL-OIL - 5000110128×1
- Cover - 5000113026×1
- Plate - 5000113010×1
- pin - 5000156837×2
- BALL JOINT - 5000156838×2
- connector - 5000156826×2
- FITTING-GREASE - 5000112724×2
- BOLT - 5000112766×2
- Washer - 5000112819×2
- BOLT - 5000112778×6
- NUT-LOCK - 5000112810×6
- 275000112776Not stockedBolt×4
- NUT-LOCK - 5000112808×4
- NLA BOLT - 5000112787×2
- BOLT - 5000112766×2
- Washer - 5000112819×2
- Washer - 5000112828×2
