RD25-ROLLER,DOUBLE DRUM

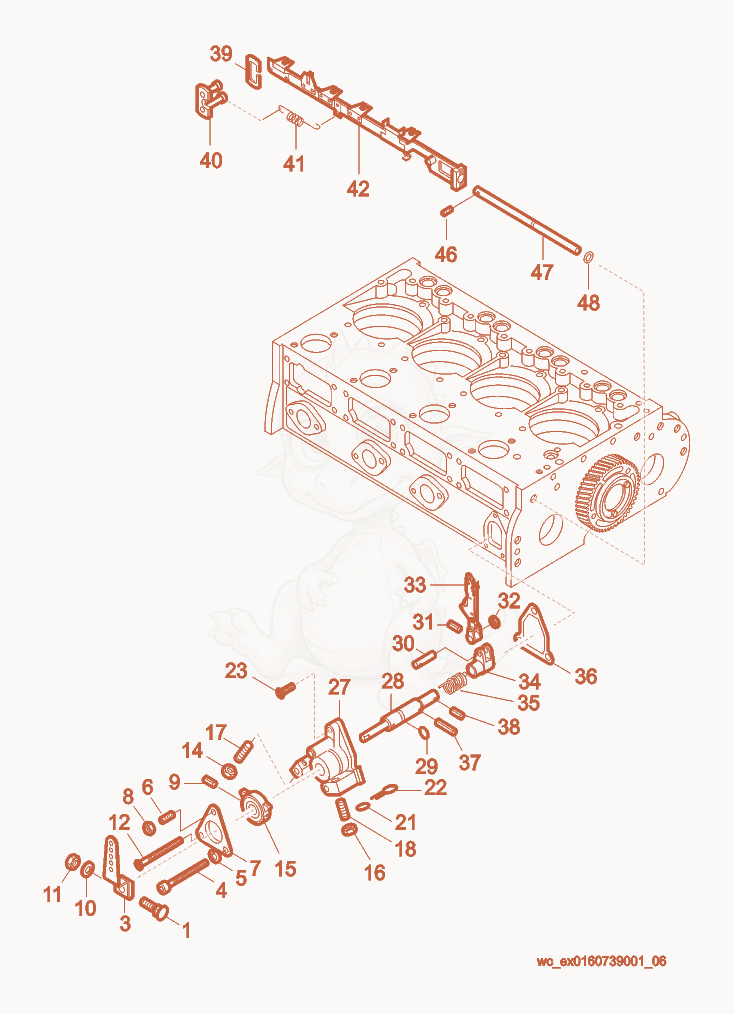

RD25 Speed control module Diagram
- SCREW M6X32 - 5000107624×1
- LEVER-HANDLE - 5000094959×1
- SCREW M8 X 70,ALLEN - 5000201364×1
- WASHER-LOCK 8 - 5000201404×1
- STUD M8 X 40 - 5000201378×1
- PLATE-FRICTION,EPA - 5000203632×1
- NUT-HEX M8 8 C3A - 5000151530×1
- PIN 5X40 - 5000107627×1
- WASHER-FLAT 6.4 - 5000151324×1
- NUT-HEX M6 8 A3C - 5000151323×1
- SCREW M8 X 70,COUNTERSUNK - 5000201383×1
- NUT M8 - 5000107270×1
- PLATE-STOP - 5000107628×1
- NUT M8,HEX - 5000201362×1
- STUD M8 X 50 - 5000201389×1
- SCREW-SET - 5000107629×1
- SEAL 8MM - 5000201399×1
- WIRE 0.5-0.3 - 5000201400×1
- SCREW M8 X 20,COUNTERSUNK - 5000201382×1
- HOUSING-EPA - 5000203633×1
- SHIM 0.3 - 5000107362×1
- Pin - 5000107633×1
- PIN 3X14 - 5000107634×1
- DISC 6,1 X 15 X 0,4 - 5000203634×1
- LEVER-GOVERNOR - 5000203635×1
- CONTROL-FORK,SPEED - 5000107636×1
- Spring - 5000107637×1
