RD25-ROLLER,DOUBLE DRUM

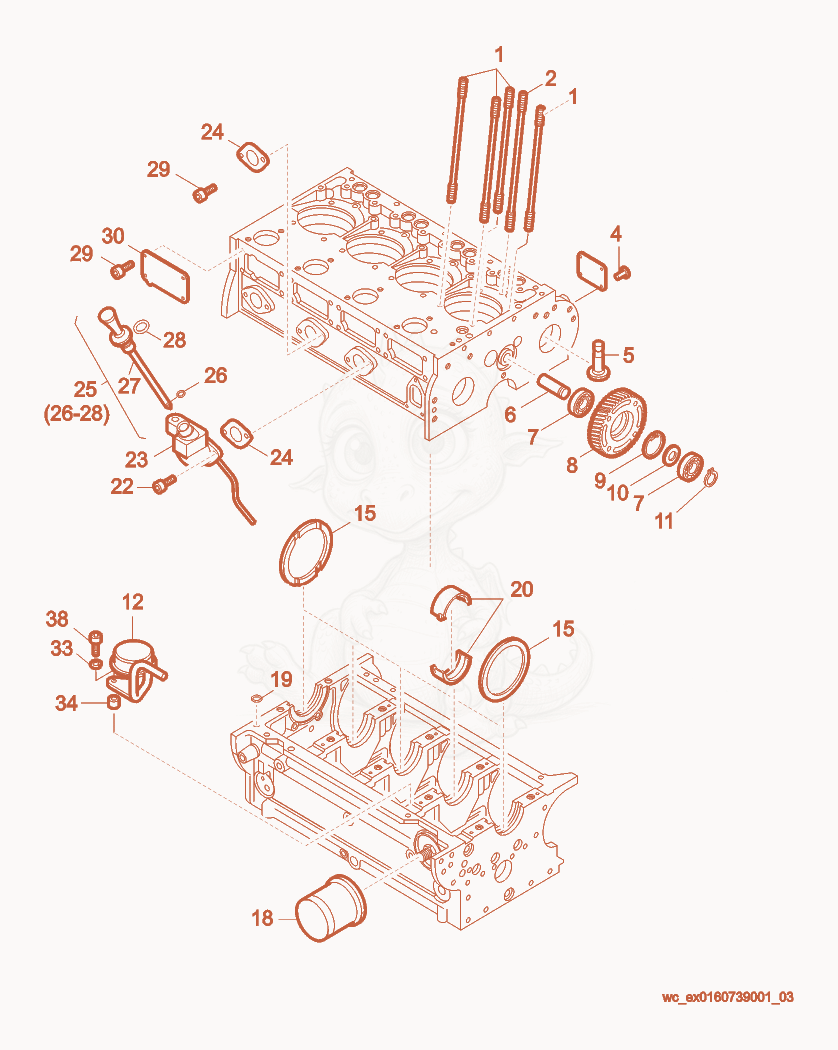

RD25 Crankcase cpl. Diagram
- STUD-CYLINDER,SHORT - 5000107562×8
- STUD-CYLINDER,LONG - 5000107563×2
- RIVET-POP,2.4MM - 5000203628×4
- Tappet - 5000107564×4
- SHAFT-IDLER GEAR - 5000107565×1
- BEARING-BALL,GROOVED - 5000107566×2
- GEAR-IDLE - 5000107567×1
- RETAINING RING 47X1.75 - 5000201361×1
- SPACER-RING - 5000107568×1
- RETAINING RING 20X1.75 - 5000201368×1
- OIL PICKUP ASSEMBLY - 5000107569×1
- WASHER-THRUST - 5000107570×2
- ELEMENT-OIL FILTER - 5000110116×1
- O-ring - 5000107916×1
- BEARING-MAIN,STD. - 5000107572×3
- SCREW M8 X 20 SOC.HD. - 5000011543×2
- BRACKET-OIL FILTER - 5000107573×1
- GASKET-OIL FILTER - 5000107574×1
- NLA DIPSTICK COMPLETE - 5000158424×1
- DIPSTICK - 5000158310×1
- SCREW M8 X 16,ALLEN - 5000201369×4
- COVER-ACCESS - 5000107578×1
- WASHER-LOCK 8 - 5000201404×2
- SPACER-TUBE - 5000107579×2
- SCREW M8 X 20 SOC.HD. - 5000011543×2
