RD25-ROLLER,DOUBLE DRUM

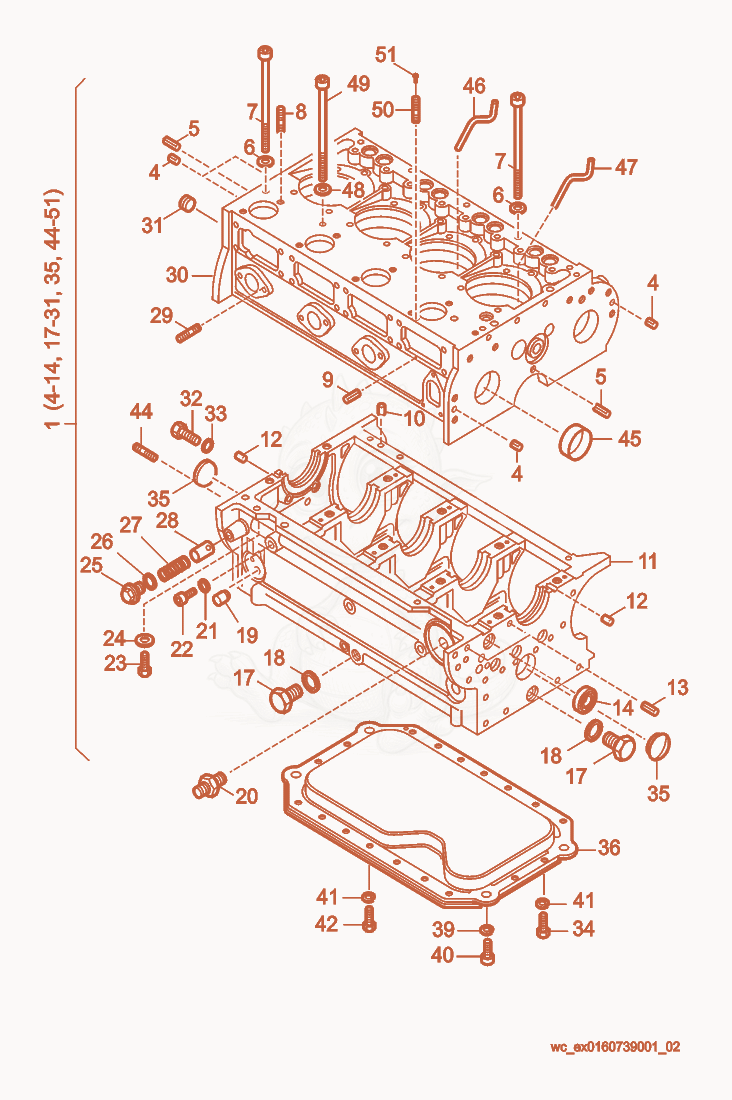

RD25 Crankcase cpl. Diagram
- Crankcase - 5000203623×1
- PIN-ROLL,8X8 - 5000107540×4
- PIN-ROLL 5 X 24 - 5000203624×2
- WASHER M12,LOCK - 5000107541×5
- SCREW M12X1.5-10.9,ALLEN - 5000107542×5
- STUD M8 X 70 - 5000203625×4
- PIN-ROLL 5 X 24 - 5000203624×1
- PIN-CYLINDER - 5000107544×1
- PIN-CYLINDER,10M6X14-ST 50K - 5000107545×2
- PIN-ROLL, 8X12 - 5000107546×2
- BEARING-NEEDLE - 5000107547×1
- PLUG-SCREW AM22X1.5 - 5000094958×2
- SEAL-OIL - 5000202416×1
- PLUG-ALUMINUM - 5000203626×1
- FITTING-OIL FILTER - 5000107550×1
- SEAL-RING A10 X 13.5,COPR - 5000071121×1
- SCREW M10X1 5.8 A3C - 5000151213×1
- SCREW-M8 X 20,HX.HD. - 5000203627×8
- WASHER-LOCK 8 - 5000201404×17
- SCREW-CLOSING - 5000107551×1
- WASHER A18X22-CU - 5000107552×1
- SPRING-PRESSURE - 5000107553×1
- VALVE-OIL RELEASE,PISTON - 5000107554×1
- STUD M6X16 - 5000107555×2
