RD25-ROLLER,DOUBLE DRUM

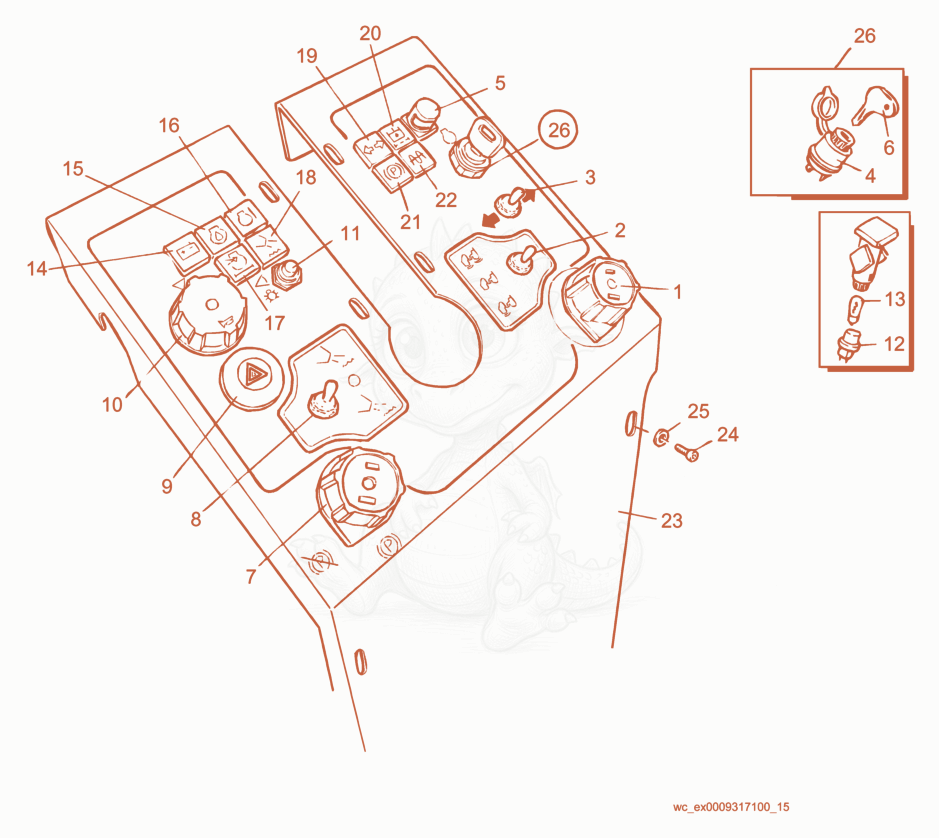

RD25 Instruments Panel Diagram
- SWITCH-BUTTON,PUSH - 5000156869×1
- SWITCH-3 WIRE POSITION - 5000156865×1
- SWITCH-6 WIRE POSITION - 5000178390×1
- SWITCH-IGNITION,ASSY W/KEY - 5000159538×1
- LIGHT - 5000156867×1
- SET-KEY - 5000156868×2
- SWITCH-BUTTON,PUSH - 5000156869×1
- SWITCH-3 WIRE POSITION - 5000156865×1
- SWITCH-BUTTON,PUSH - 5000156870×1
- Switch - 5000112556×1
- SWITCH-BUTTON,PUSH - 5000156871×1
- holder - 5000156872×9
- LIGHT - 5000112536×9
- Light-warning - 5000112521×1
- NLA LIGHT-WARNING - 5000157621×1
- LIGHT - 5000156874×1
- NLA LIGHT - 5000156873×1
- LIGHT - 5000156875×1
- LIGHT - 5000156876×1
- LIGHT - 5000156877×1
- LIGHT - 5000156878×1
- LIGHT - 5000156879×1
- PANEL-CONTROL - 5000156880×1
- bolt - 5000156881×8
- WASHER 13 X 24 X 1.6 - 5000117933×8
- SWITCH-IGNITION,ASSY W/KEY - 5000159538×1
