RD25-ROLLER,DOUBLE DRUM

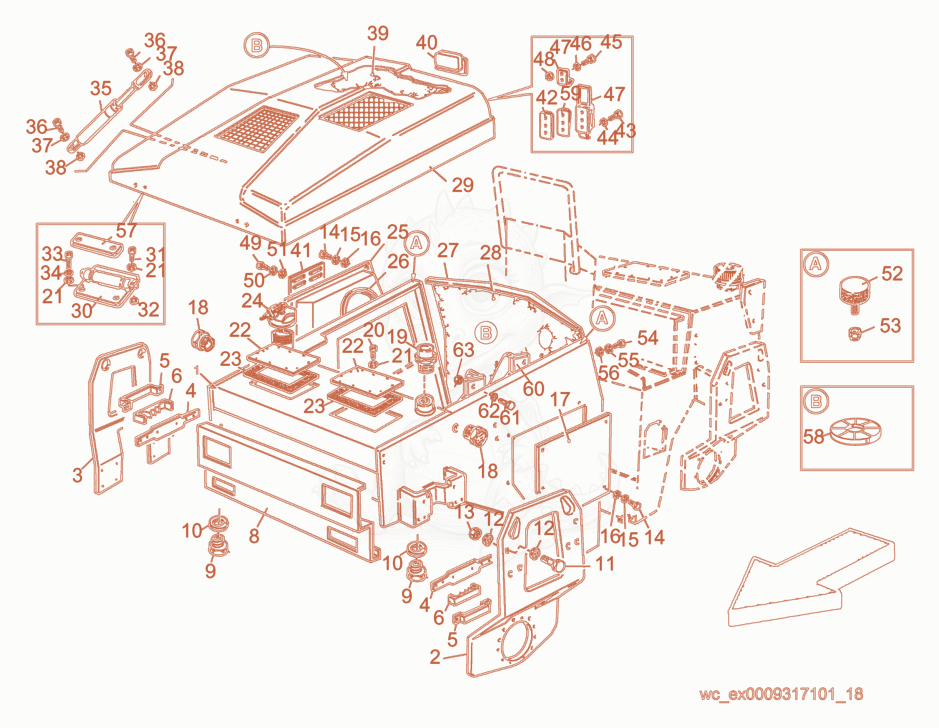

RD25 Front Frame Diagram
- frame - 5000156915×1
- plate - 5000156916×1
- plate - 5000157328×1
- NLA COVER-HOSE - 5000157944×2
- NLA CLAMP-HOSE - 5000157942×2
- NLA CLAMP-HOSE - 5000157943×2
- BAR - 5000156918×1
- PLUG - 5000112720×2
- WASHER-COPPER - 5000112840×2
- bolt - 5000157331×12
- washer - 5000156919×24
- NUT-LOCK - 5000112808×12
- NLA BOLT - 5000112769×10
- Washer - 5000112820×10
- Washer - 5000112834×10
- cover - 5000156920×1
- INDICATOR-LEVEL - 5000112722×2
- BREATHER - 5000112721×1
- BOLT - 5000112765×24
- Washer - 5000112828×40
- cover - 5000156921×2
- NLA GASKET - 5000113307×2
- CAP-W/KEY - 5000156922×1
- KEY - 5000115556×1
- NLA COVER-AIR INTAKE - 5000157614×1
- Seal-trim - 5000157615×1
- HOOD - 5000156923×1
- panel - 5000156924×1
- HOOD - 5000156925×1
- Hinge - 5000112731×2
- BOLT - 5000112751×4
- NUT-LOCK - 5000112805×4
- BOLT - 5000112765×4
- Washer - 5000112819×4
- shock absorber - 5000156926×1
- BOLT - 5000112752×2
- Washer - 5000112828×2
- NUT-LOCK - 5000112805×2
- NLA PANEL - 5000157312×1
- handle - 5000157313×1
- COVER-GRILLE - 5000157616×1
- Plate - 5000113626×2
- bolt - 5000157314×6
- Washer - 5000112825×6
- bolt - 5000157315×4
- Washer - 5000113258×4
- LATCH - 5000112730×2
- NUT-LOCK - 5000112803×2
- NLA BOLT - 5000112762×4
- Washer - 5000112818×4
- Washer - 5000112826×4
- NLA SHOCKMOUNT - 5000115555×2
- NUT-LOCK - 5000112804×2
- BOLT - 5000112770×4
- Washer - 5000112820×4
- Washer - 5000118704×4
- Spacer bar - 5000158580×2
- NLA WASHER - 5000158581×38
- Block - 5000158582×2
- SUPPORT-BATTERY - 5000158583×1
- BOLT - 5000112771×3
- Washer - 5000112834×3
- NUT-LOCK - 5000112806×3
