RD25-ROLLER,DOUBLE DRUM

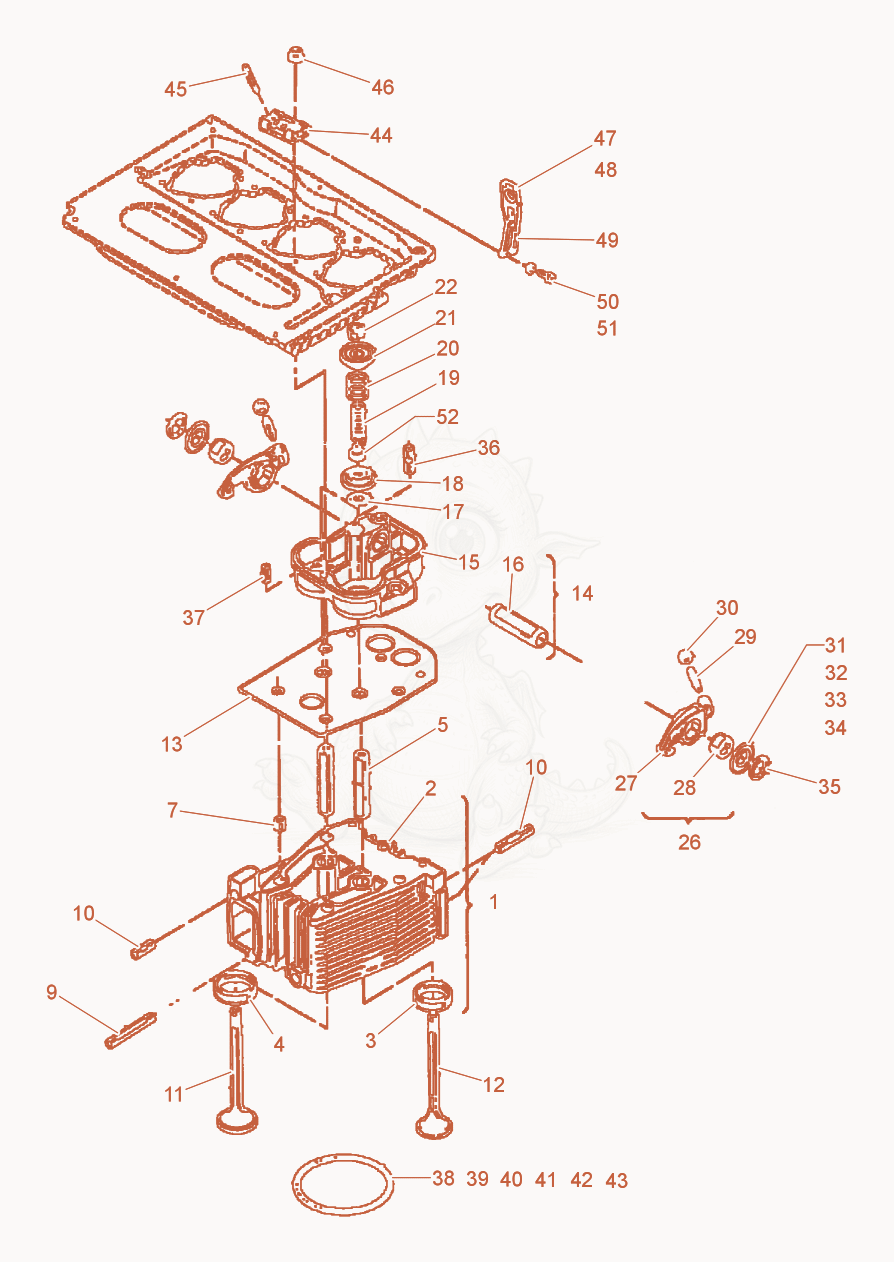

RD25 Cylinder Head Diagram
- CYLINDER HEAD ASSEMBLY - 5000107654×2
- VALVE-GUIDE - 5000107655×4
- Pin - 5000107656×8
- STUD M8 X 65 - 5000201371×2
- STUD M8 X 30 - 5000010928×6
- VALVE-INTAKE - 5000107657×2
- VALVE-EXHAUST - 5000107658×2
- PLATE-GUIDE - 5000107659×2
- HOUSING-ROCKER - 5000107660×2
- SHAFT-ROCKER - 5000107661×2
- O-ring - 5000107662×4
- SPRING SEAT - 5000107663×4
- SPRING-VALVE,INNER L - 5000107664×4
- SPRING-VALVE,OUTER - 5000107665×4
- RETAINER-VALVE - 5000107666×4
- HOLDER-VALVE - 5000107667×4
- ROCKER ARM-INTAKE - 5000107668×2
- BUSHING-ROCKER - 5000107669×2
- ROCKER ARM-EXHAUST - 5000107670×2
- BUSHING-ROCKER - 5000107669×2
- SCREW-VALVE,ADJUST - 5000107671×4
- NUT-LOCK - 5000107672×4
- SHIM 0.15MM - 5000107673×1
- SHIM 19X32X0.2 - 5000107309×1
- SHIM 19X32X0.3 - 5000107310×1
- SHIM 0.40MM - 5000107676×1
- RETAINING RING 19X1.2 - 5000201358×4
- STUD M10X25-5.6 - 5000107677×2
- PIN 6X12 - 5000107678×2
- GASKET 0.7MM,CYL.HEAD - 5000107679×1
- GASKET 0.8MM,CYL.HEAD - 5000107680×1
- GASKET 0.9MM,CYL.HEAD - 5000107681×1
- GASKET 1.0MM,CYL.HEAD - 5000107682×1
- GASKET 1.1MM,CYL.HEAD - 5000107683×1
- GASKET 1.2MM,CYL.HEAD - 5000107684×1
- FLANGE-CENTERING - 5000107685×2
- SCREW M8 X 55 HX.HD. - 5000011451×4
- NUT M10X1.25,FLANGE - 5000107686×10
- Clamp - 5000107687×1
- WASHER-LOCK B8 - 5000012397×2
- SCREW M8X18-10.9,ALLEN - 5000107688×2
- SEAL-VALVE STEM - 5000107689×4
