RD25-ROLLER,DOUBLE DRUM

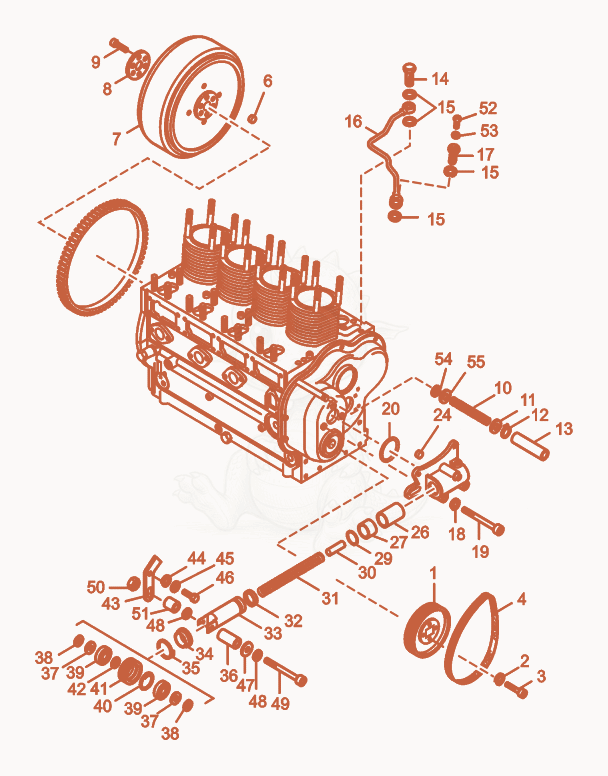

RD25 Pulley Diagram
- BELT-PULLEY - 5000107743×1
- WASHER-LOCK B8 - 5000012397×4
- SCREW M8 X 20 SOC.HD. - 5000011543×4
- BELT - 5000110119×1
- BUSHING - 5000107745×1
- FLYWHEEL - 5000107746×1
- Plate-retaining - 5000107747×1
- SCREW M14X1.5X45-10.9,ALLEN - 5000107748×6
- SPRING-STOP ROD - 5000107749×1
- Washer - 5004102190×1
- RET.RING-EXT 8MMX.8MM, - 5002006072×1
- TUBE-PROTECTION - 5000107751×1
- BOLT-BANJO A2-3 - 5000202417×1
- RING-SEALING - 5000107342×4
- PIPE-OIL - 5000107752×1
- BOLT-BANJO - 5000107753×1
- WASHER-LOCK B8 - 5000014391×3
- SCREW 8 X 65,ALLEN - 5000201367×3
- O-ring - 5000107754×1
- BUSHING - 5000107756×1
- BUSHING - 5000107757×1
- BUSHING - 5000107758×1
- RING-SEAL - 5000107759×1
- GUIDE-SPRING - 5000107760×1
- SPRING-PRESSURE - 5000107761×1
- O-ring - 5000107762×1
- PISTON-TENSION,BELT - 5000107763×1
- RING-SCRAPER - 5000107764×1
- RETAINING RING 45X1.75 - 5000107765×1
- BUSHING - 5000107766×1
- RING-WASHER - 5000107767×2
- BUSHING - 5000107768×2
- BEARING-BALL,GROOVED - 5000107769×2
- RETAINING RING 28X1.2 - 5000201359×1
- PULLEY - 5000107770×1
- DISC-SUPPORTING - 5000107771×1
- Lever - 5000107772×1
- DISC - 5000107773×1
- WASHER-LOCK B6 - 5000010649×1
- SCREW M6 X 20 HX.HD. - 5000011470×1
- WASHER-SHIELD - 5000107774×1
- WASHER-FLAT,M8,ZINC - 5000010622×2
- SCREW 8 X 65,ALLEN - 5000201367×1
- NUT-LOCK VM8 HEX - 5000033356×1
- BUSHING - 5000107775×1
- SCREW M6 X 8 HX.HD. - 5000013550×1
- SEAL-RING 6.5 X 9.5 - 5000013440×1
- O-RING - 5000094908×1
- DISC - 5000107777×1
