RD25-ROLLER,DOUBLE DRUM

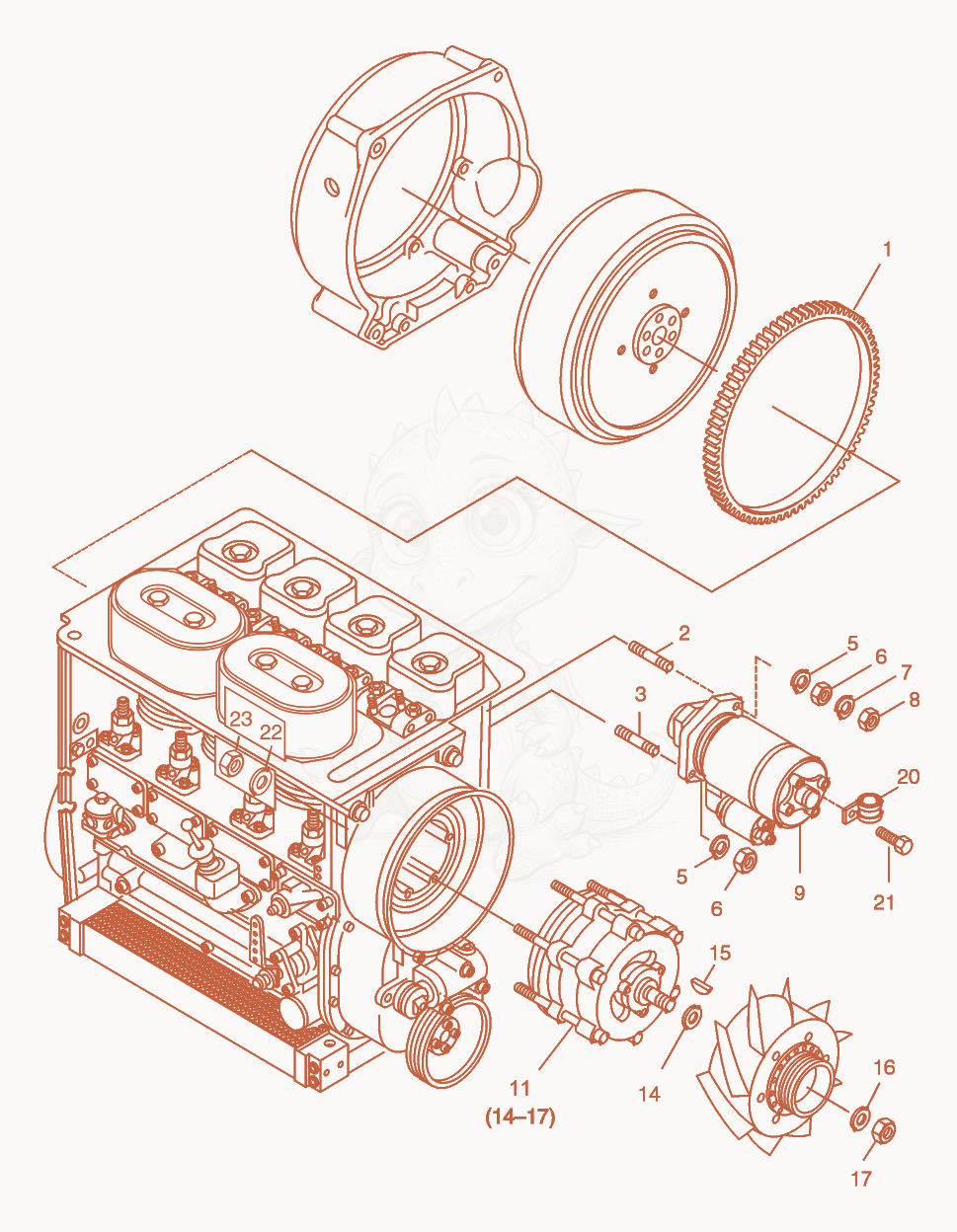

RD25 Starter and Alternator Diagram
- GEAR-RING - 5000107852×1
- Stud - 5000201390×1
- STUD M12 X 25 - 5000201363×1
- WASHER-LOCK B12 - 5000012648×1
- SCREW M12 X 30 HX.HD. - 5000011423×1
- WASHER-SPRING M12 - 5000201365×1
- NUT M12,HEX - 5000201366×1
- STARTER-MOTOR - 5000112496×1
- ALTERNATOR - 5000112504×1
- KEY-WOODRUFF 4 X 6.5 - 5000010386×1
- NUT-HEX - 5000107856×1
- Clamp - 5000107451×1
- SCREW M6 X 12 HX.HD. - 5000012357×1
- WASHER-LOCK A6 - 5000012971×5
- NUT M6 8,HEX - 5000010880×5
